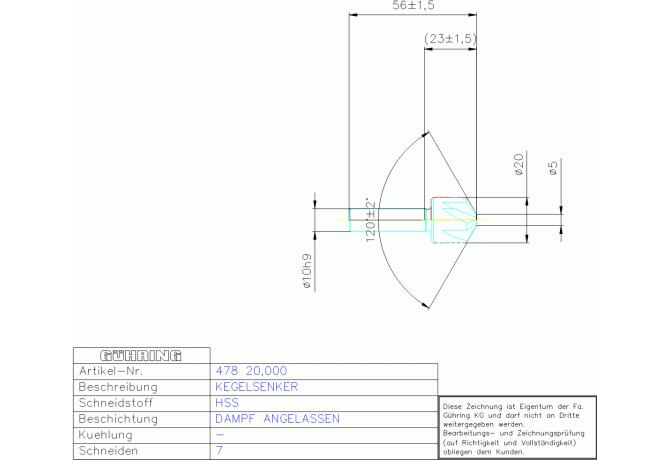

Главная Каталог продукции Toolunited 12 302-05 - Stepped countersinking tool / tapered countersinking tool 478 20.000

478 20.000

478 20.000 478 20.000

478 20.000

Gühring
Артикул: 9004780200000
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
1
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
DAMPF ANGELASSEN
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
N
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter minimum
5 mm
DCONMSLD Shank diameter lower limit
-0.036 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter 1st step maximum
20 mm
Delivery state valid from
12/1/2021
DIN
ZYL01000105
FamilyProducts
HSS KEGELSENKER 120 20,000 DIN 347RN ZYL
GEP Guide element property
0 - Without guide elements
GPP Guide pilot
0 - Without pilot
GRDMFG Grade manufacturers designation
HSS
GRDPRIO Standard designation of the grade main application
HSS
HAND Cutting direction
R - Right
ID Technical product number
9004780200000
Interface codes
J6 /
ISYC Subclass
302-05 - Stepped countersinking tool / tapered countersinking tool
LCF Length chip flute
15 mm
LF Functional length
56 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01000105
LPR Protruding length
23 mm
LS Shank length
33.5 mm
LU Usable length
22.5 mm
Name Identifying order number
478 20.000
NOF Flute count
7
OAL Overall length
56 mm
PHD Premachined hole diameter
6 mm
SIG Point angle 1st step
120 Degree
STDLET Standard letter to the standard number
A
STDNO Standard
DIN347
TL Taper length
4.167 mm
Working process
SPR - Profile counterboring
WT Weight of item
0.064 kg
