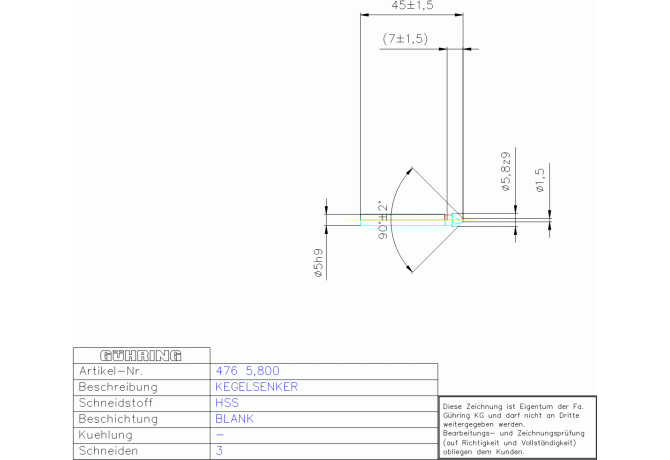

Главная Каталог продукции Toolunited 12 302-05 - Stepped countersinking tool / tapered countersinking tool 476 5.800

476 5.800

Артикул: 9004760058000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

1.5 mm

DCONMSLD Shank diameter lower limit

-0.03 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter 1st step maximum

5.8 mm

Delivery state valid from

12/1/2021

DIN

ZYL00500105

FamilyProducts

HSS KEGELSENKER 90 5,800 DIN 335RN ZYLFO

FHH Flute helix hand

R - Hand of helix right

GEP Guide element property

0 - Without guide elements

GPP Guide pilot

0 - Without pilot

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HSS

HAND Cutting direction

R - Right

ID Technical product number

9004760058000

Interface codes

J6 / J61

ISO

ZYL01F5000h$09

ISYC Subclass

302-05 - Stepped countersinking tool / tapered countersinking tool

LCF Length chip flute

5.5 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0050

LOC-03 DCONMS Diameter

5 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03 ISO

ZYL01F5000h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00500105

LPR Protruding length

7 mm

LS Shank length

37 mm

LU Usable length

8 mm

Name Identifying order number

476 5.800

NOF Flute count

OAL Overall length

45 mm

PHD Premachined hole diameter

2 mm

SIG Point angle 1st step

90 Degree

STDLET Standard letter to the standard number

STDNO Standard

DIN335

TCDCONMS ISO-tolerance class shank diameter

TL Taper length

2.15 mm

Working process

SPR - Profile counterboring

WT Weight of item

0.007 kg
