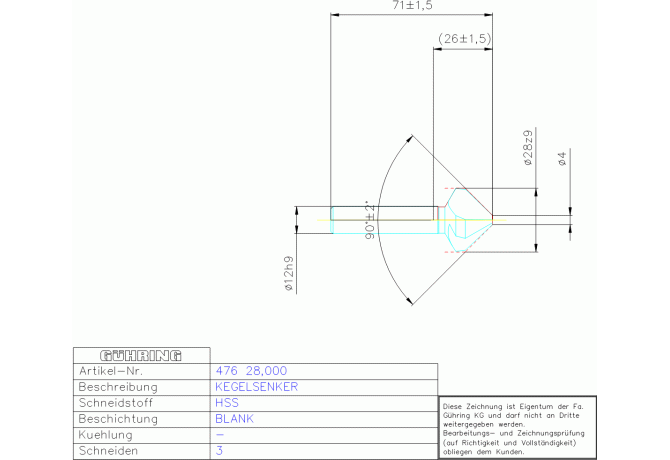

Главная Каталог продукции Toolunited 12 302-05 - Stepped countersinking tool / tapered countersinking tool 476 28.000

476 28.000

Артикул: 9004760280000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

4 mm

DCONMSLD Shank diameter lower limit

-0.043 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter 1st step maximum

28 mm

Delivery state valid from

12/1/2021

DIN

ZYL01200105

FamilyProducts

HSS KEGELSENKER 90 28,000 DIN 335RN ZYLF

FHH Flute helix hand

R - Hand of helix right

GEP Guide element property

0 - Without guide elements

GPP Guide pilot

0 - Without pilot

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HSS

HAND Cutting direction

R - Right

ID Technical product number

9004760280000

Interface codes

J6 / J61

ISO

ZYL01G1200h$09

ISYC Subclass

302-05 - Stepped countersinking tool / tapered countersinking tool

LCF Length chip flute

22 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$09

LOC-03 ISO

ZYL01G1200h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01200105

LPR Protruding length

26 mm

LS Shank length

47 mm

LU Usable length

24 mm

Name Identifying order number

476 28.000

NOF Flute count

OAL Overall length

71 mm

PHD Premachined hole diameter

4.5 mm

SIG Point angle 1st step

90 Degree

STDLET Standard letter to the standard number

STDNO Standard

DIN335

TCDCONMS ISO-tolerance class shank diameter

TL Taper length

12 mm

Working process

SPR - Profile counterboring

WT Weight of item

0.078 kg
