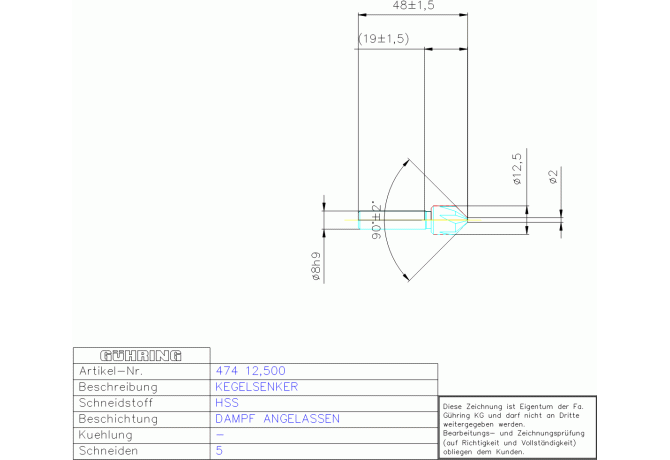

Главная Каталог продукции Toolunited 12 302-05 - Stepped countersinking tool / tapered countersinking tool 474 12.500

474 12.500

474 12.500 474 12.500

474 12.500

Gühring
Артикул: 9004740125000
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
1
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
DAMPF ANGELASSEN
COMPC Company code
GG - Gühring
CRCLDIN Tool application class
N
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter minimum
2 mm
DCONMSLD Shank diameter lower limit
-0.036 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter 1st step maximum
12.5 mm
Delivery state valid from
12/1/2021
DIN
ZYL00800105
FamilyProducts
HSS KEGELSENKER 90 12,500 DIN 335RN ZYLF
FHH Flute helix hand
R - Hand of helix right
GEP Guide element property
0 - Without guide elements
GPP Guide pilot
0 - Without pilot
GRDMFG Grade manufacturers designation
HSS
GRDPRIO Standard designation of the grade main application
HSS
HAND Cutting direction
R - Right
ID Technical product number
9004740125000
Interface codes
J6 /
ISYC Subclass
302-05 - Stepped countersinking tool / tapered countersinking tool
LCF Length chip flute
12 mm
LF Functional length
48 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00800105
LPR Protruding length
19 mm
LS Shank length
29.5 mm
LU Usable length
18.5 mm
Name Identifying order number
474 12.500
NOF Flute count
5
OAL Overall length
48 mm
PHD Premachined hole diameter
2.5 mm
SIG Point angle 1st step
90 Degree
STDLET Standard letter to the standard number
A
STDNO Standard
DIN335
TL Taper length
5.25 mm
Working process
SPR - Profile counterboring
WT Weight of item
0.025 kg
