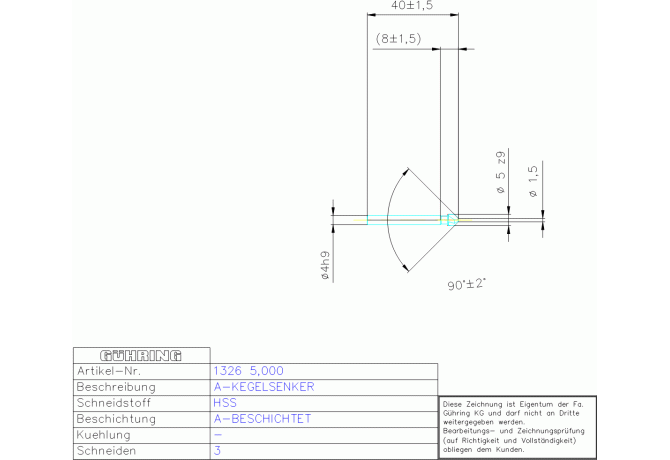

Главная Каталог продукции Toolunited 12 302-05 - Stepped countersinking tool / tapered countersinking tool 1326 5.000

1326 5.000

1326 5.000 1326 5.000

1326 5.000

Gühring
Артикул: 9013260050000
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
3
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TIALN
COMPC Company code
GG - Gühring
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter minimum
1.5 mm
DCONMSLD Shank diameter lower limit
-0.03 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter 1st step maximum
5 mm
Delivery state valid from
12/1/2021
DIN
ZYL00400105
FamilyProducts
HSS A-KEGELSENKER 90 5,000 DIN335RN ZYL
FHH Flute helix hand
R - Hand of helix right
GEP Guide element property
0 - Without guide elements
GPP Guide pilot
0 - Without pilot
GRDMFG Grade manufacturers designation
HSS
GRDPRIO Standard designation of the grade main application
HSS
HAND Cutting direction
R - Right
ID Technical product number
9013260050000
Interface codes
J6 / J61
ISO
ZYL01F4000$$$$
ISYC Subclass
302-05 - Stepped countersinking tool / tapered countersinking tool
LCF Length chip flute
4.5 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0040
LOC-03 DCONMS Diameter
4 mm
LOC-03 ISO
ZYL01F4000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00400105
LPR Protruding length
6 mm
LS Shank length
32 mm
LU Usable length
8 mm
Name Identifying order number
1326 5.000
NOF Flute count
3
OAL Overall length
40 mm
PHD Premachined hole diameter
2 mm
SIG Point angle 1st step
90 Degree
STDLET Standard letter to the standard number
C
STDNO Standard
DIN335
TL Taper length
1.75 mm
Working process
SPR - Profile counterboring
WT Weight of item
0.006 kg
