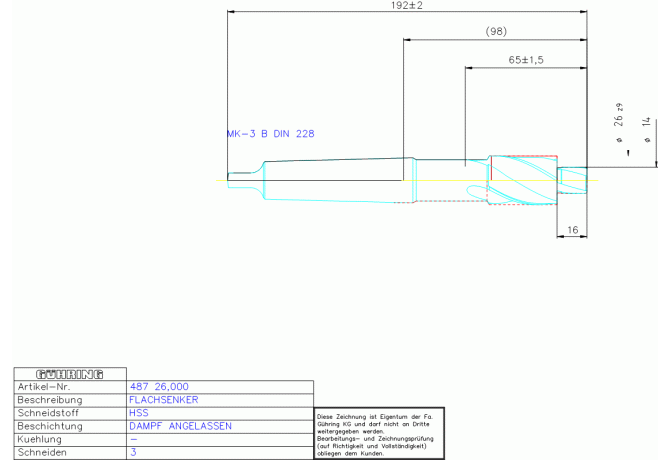

Главная Каталог продукции Toolunited 12 302-04 - Counterbore 487 26.000

487 26.000

Артикул: 9004870260000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating / Покрытие

DAMPF ANGELASSEN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

26 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

MKG00302085

FamilyProducts

HSS FLACHSENKER 26,000 WN 18RN KERN MKSE

FHA Flute helix angle

32 Degree

FHP Flute helix pitch

125 mm

GEP Guide element property

0 - Without guide elements

GPD Guide pilot diameter

14 mm

GPL Guide pilot length

16 mm

GPP Guide pilot

1 - With fixed pilot

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HSS

HAND Cutting direction

R - Right

ID Technical product number

9004870260000

Interface codes

J6 / J61

ISO

MKG20C0030$$$$

ISYC Subclass

302-04 - Counterbore

LCF Length chip flute

65 mm

LF Functional length

98 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

MKG Morse taper

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0030

LOC-03 ISO

MKG20C0030$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MKG00302085

LPR Protruding length

98 mm

LS Shank length

99 mm

Name Identifying order number

487 26.000

NOF Flute count

OAL Overall length

192 mm

SIG Point angle 1st step

180 Degree

STDNO Standard

WN 18

THSZMS Connection thread nominal size machine side

M 16

Working process

SPL - Spot facing

WT Weight of item

0.454 kg
