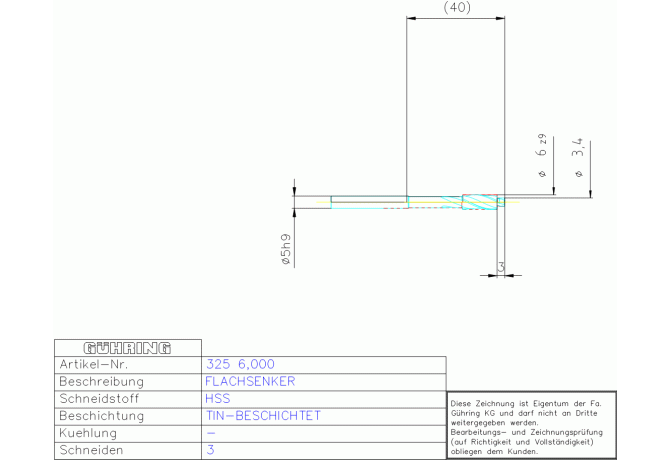

Главная Каталог продукции Toolunited 12 302-04 - Counterbore 325 6.000

325 6.000

Артикул: 9003250060000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TIN

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

6 mm

DCONMSLD Shank diameter lower limit

-0.03 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00500105

FamilyProducts

HSS S-FLACHSENKER 6,000 DIN 373RN MITT Z

FHA Flute helix angle

27 Degree

FHH Flute helix hand

R - Hand of helix right

FHP Flute helix pitch

37.5 mm

GEP Guide element property

0 - Without guide elements

GPD Guide pilot diameter

3.4 mm

GPL Guide pilot length

3.15 mm

GPP Guide pilot

1 - With fixed pilot

GRDMFG Grade manufacturers designation

HSS

GRDPRIO Standard designation of the grade main application

HSS

HAND Cutting direction

R - Right

ID Technical product number

9003250060000

Interface codes

J6 / J61

ISO

ZYL01F5000$$$$

ISYC Subclass

302-04 - Counterbore

LCF Length chip flute

26 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0050

LOC-03 DCONMS Diameter

5 mm

LOC-03 ISO

ZYL01F5000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00500105

LPR Protruding length

40 mm

LS Shank length

31.5 mm

Name Identifying order number

325 6.000

NOF Flute count

OAL Overall length

71 mm

SIG Point angle 1st step

180 Degree

STDNO Standard

DIN373

THSZMS Connection thread nominal size machine side

M 3

Working process

SPL - Spot facing

WT Weight of item

0.009 kg
