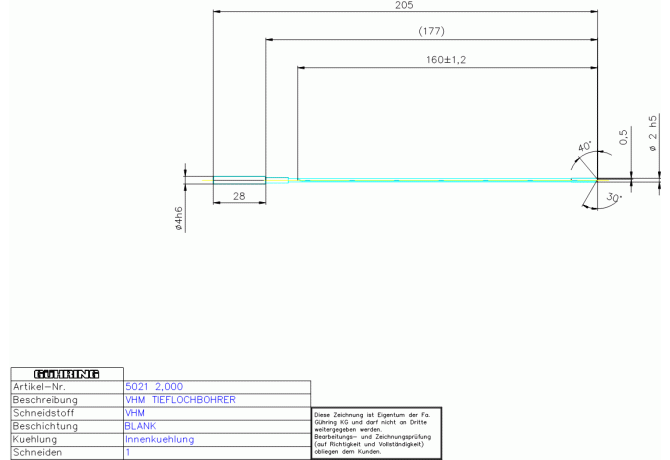

Главная Каталог продукции Toolunited 12 302-00 - Drill unspecified 5021 2.000

5021 2.000

Артикул: 9050210020000

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating

OHNE

COMPC Company code

GG - Gühring

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

DC Cutting diameter minimum

2 mm

DCONMSLD Shank diameter lower limit

-0.008 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2021

DIN

ZYL00400115

FamilyProducts

VHM TIEFLOCHB,2,00 EB100 SPAN.LG.160 RUG

FHH Flute helix hand

N - Hand of helix neutral

GRD2ND Standard designation of the grade 2nd application

VHM

GRDMFG Grade manufacturers designation

VHM

GRDPRIO Standard designation of the grade main application

HF-K

HAND Cutting direction

R - Right

ID Technical product number

9050210020000

Interface codes

J6 /

ISYC Subclass

302-00 - Drill unspecified

LCF Length chip flute

160 mm

LF Functional length

204.5 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0040

LOC-03 DCONMS Diameter

4 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00400115

LPR Protruding length

177 mm

LS Shank length

28 mm

LU Usable length

156 mm

Name Identifying order number

5021 2.000

NOF Flute count

OAL Overall length

205 mm

PL Point length

0.5 mm

SIG Point angle 1st step

100 Degree

STDNO Standard

WN TLB

TCDCONMS ISO-tolerance class shank diameter

Working process

BVB - Drilling

WT Weight of item

0.023 kg
