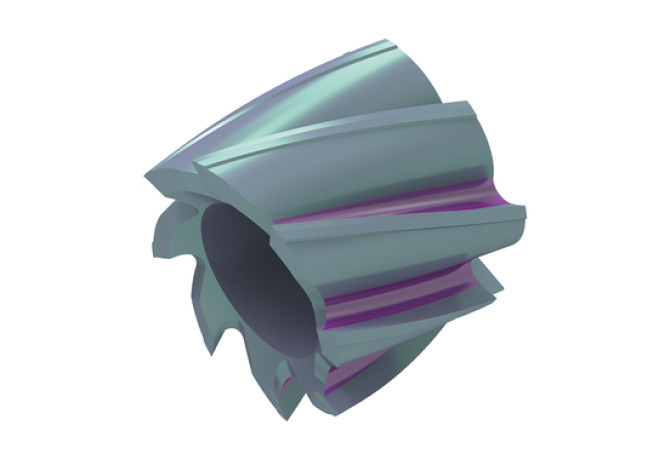

Главная Каталог продукции Toolunited 11 304-02 - Shell mill 54035080

54035080

Артикул: 54035080

В наличии

В корзину

Описание

Характеристики

COATN Coating

Ti100 Pro

COMPC Company code

CE - Ceratizit

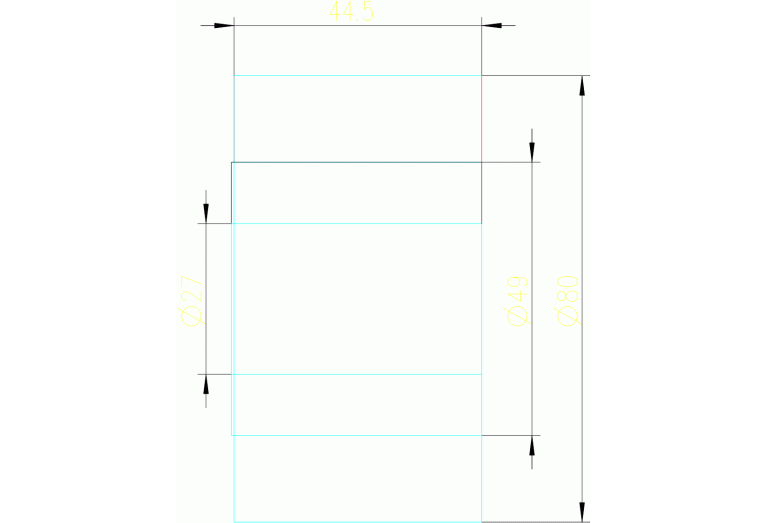

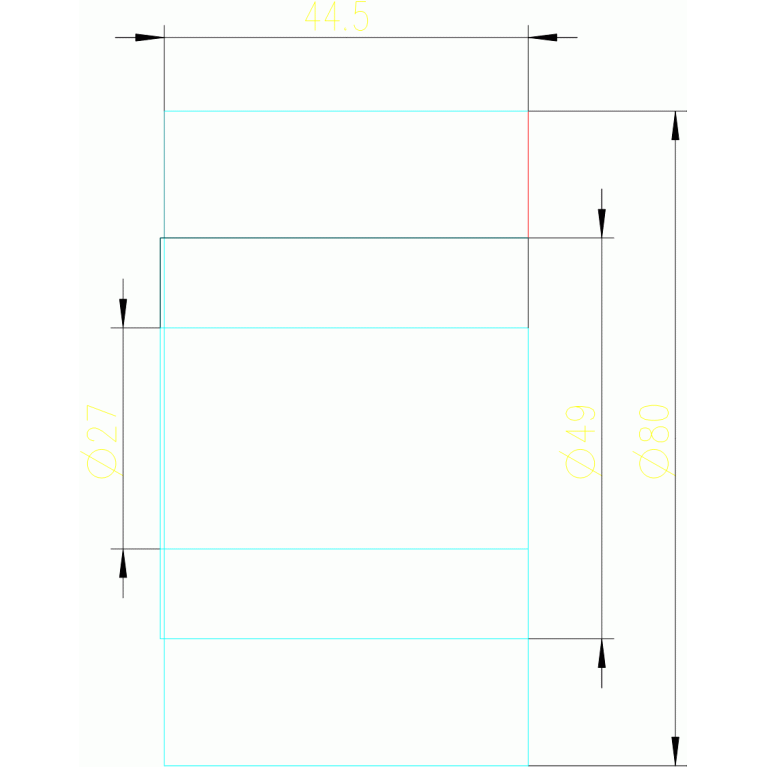

CWN Cutting width minimum

44.5 mm

DC Cutting diameter

80 mm

Delivery state valid from

10/1/2021

DHUB Hub diameter

49 mm

DIN

FDA02701200

F71 Number of corner designs

FamilyProducts

HSSE WALZENSTIRNFRÄSER

FHA Flute helix angle

25 Degree

FHH Flute helix hand

R - Hand of helix right

GAMP Rake angle axial

10 Degree

Interface codes

J6 /

ISYC Subclass

304-02 - Shell mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0270

LOC-03 DCONMS Diameter

27 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02701200

Name Identifying order number

54035080

OAW Overall width

45 mm

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
