22365012
22365012
Артикул:
22365012
В наличии
Характеристики
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
TiN
COMPC Company code
CE - Ceratizit
CXSC Coolant exit style code
0 - Without coolant exit
Delivery state valid from
10/1/2021
DIN
ZYL01002105
DRVS Drive size
8 mm
FamilyProducts
HSSE MASCH.GEWINDEBOHRER DSL
FHA Flute helix angle
42 Degree
FHH Flute helix hand
R - Hand of helix right
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-00 - Thread cutting tap, forming tap, cutting die unspecified
LDRED Neck length
26 mm
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01002105
Name Identifying order number
22365012

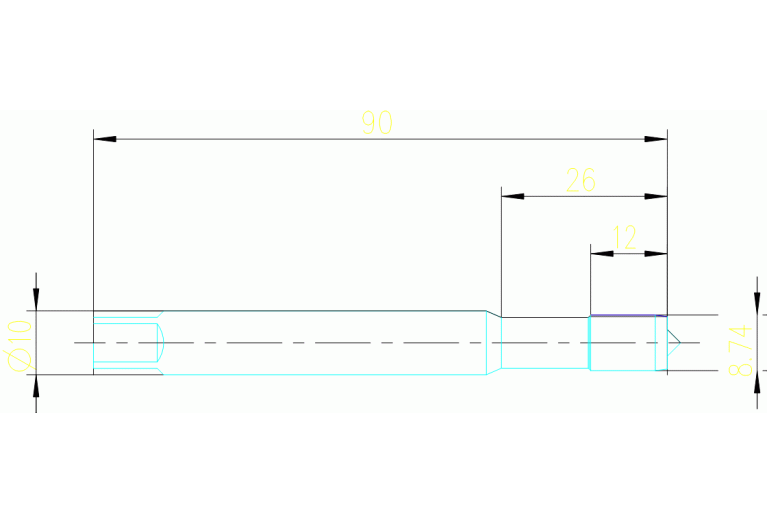

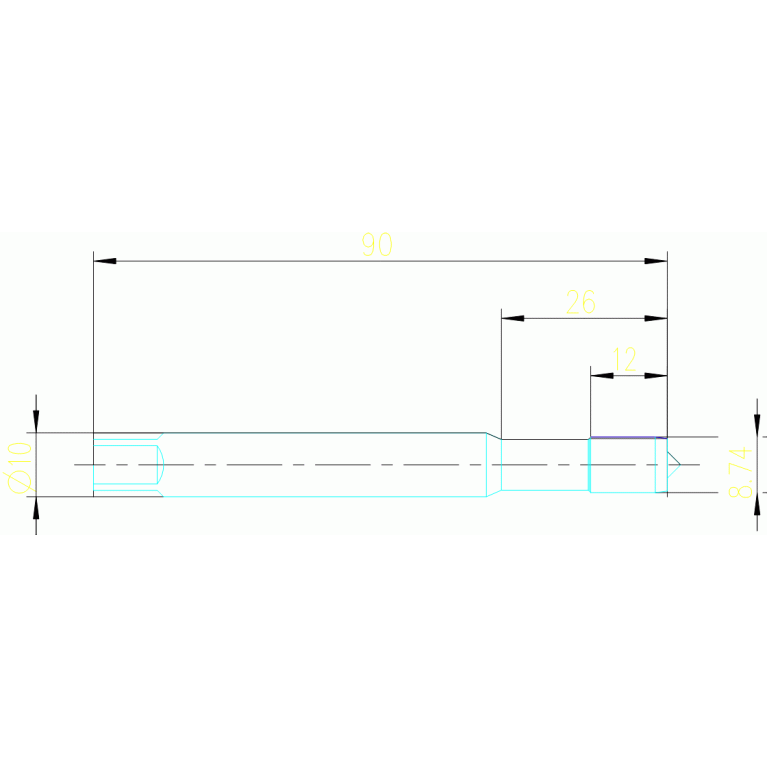

OAL Overall length
90 mm
TCL Tap chamfer length
1.882 mm
TD Thread diameter
8.74 mm
TG Taper ratio
1:16
THFT Thread form type
NPT
THL Thread cutting part length
12 mm
TP Thread pitch
0.941 mm
TPI Threads per inch
27 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
