Артикул:
22361075
В наличии
Характеристики
CNSC Coolant entry style code
0 - Without coolant entry
COATN Coating
ohne
COMPC Company code
CE - Ceratizit
CXSC Coolant exit style code
0 - Without coolant exit
Delivery state valid from
10/1/2021
DIN
ZYL02002105
DRVS Drive size
16 mm
FamilyProducts
HSSE MASCH.GEWINDEBOHRER DSL
FHA Flute helix angle
0 Degree
FHH Flute helix hand
N - Hand of helix neutral
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
301-00 - Thread cutting tap, forming tap, cutting die unspecified
LOC-03 CCFMS Connection code form
21
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02002105
Name Identifying order number
22361075

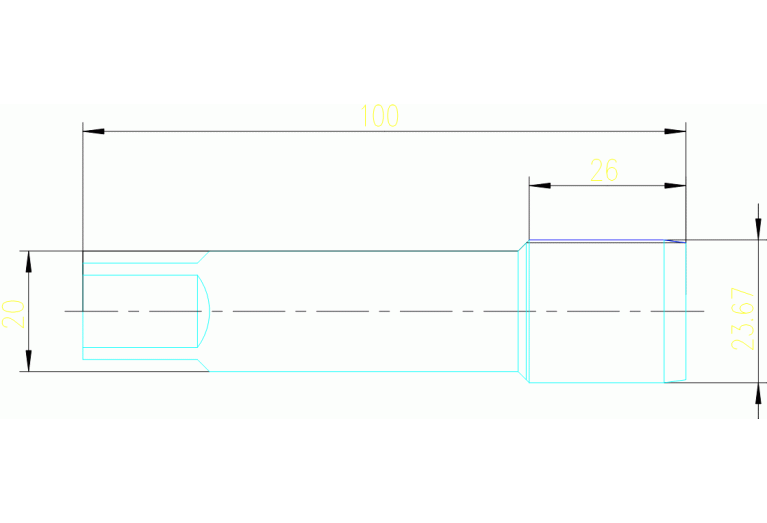

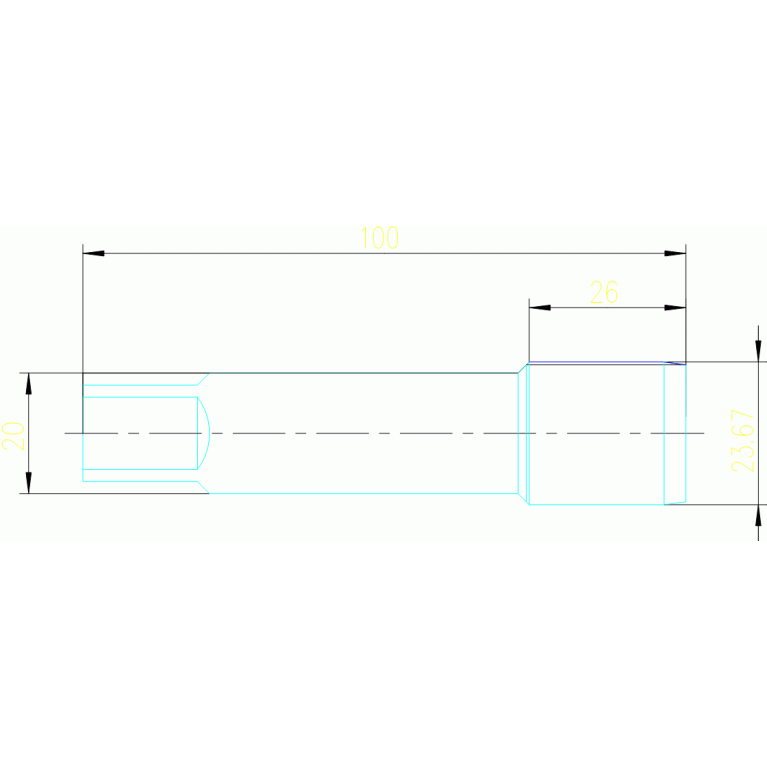

OAL Overall length
100 mm
TCL Tap chamfer length
3.628 mm
TD Thread diameter
23.67 mm
TG Taper ratio
1:16
THFT Thread form type
NPT
THL Thread cutting part length
26 mm
TP Thread pitch
1.814 mm
TPI Threads per inch
14 1/in
TTPID Tap type identifier
1 - Machine tap
Working process
No working processes available
