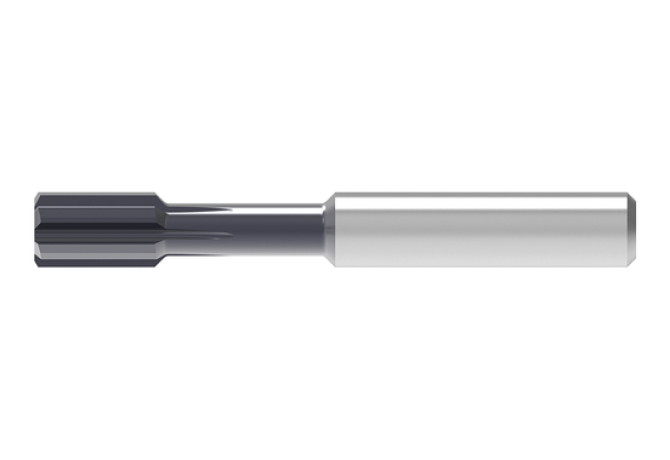

Главная Каталог продукции Toolunited 11 311-01 - Solid cylindrical reamer 4048807980

4048807980

Артикул: 4048807980

В наличии

В корзину

Описание

Характеристики

COATN Coating / Покрытие

DBG-U

COMPC Company code

CE - Ceratizit

Delivery state valid from

10/1/2021

DIN

ZYL00800115

FamilyProducts

VHM 1/100 MASCHINENREIBAHLE GERADE

FHH Flute helix hand

N - Hand of helix neutral

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

311-01 - Solid cylindrical reamer

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800115

LPR Protruding length

34 mm

LS Shank length

36 mm

LU Usable length

34 mm

Name Identifying order number

4048807980

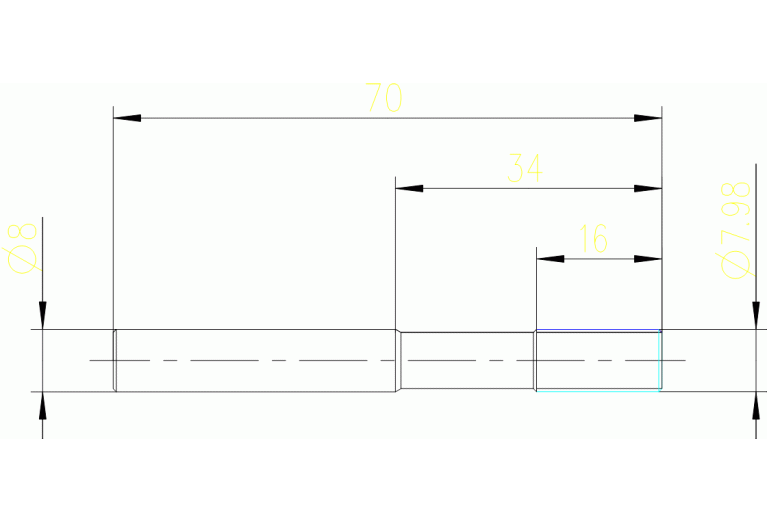

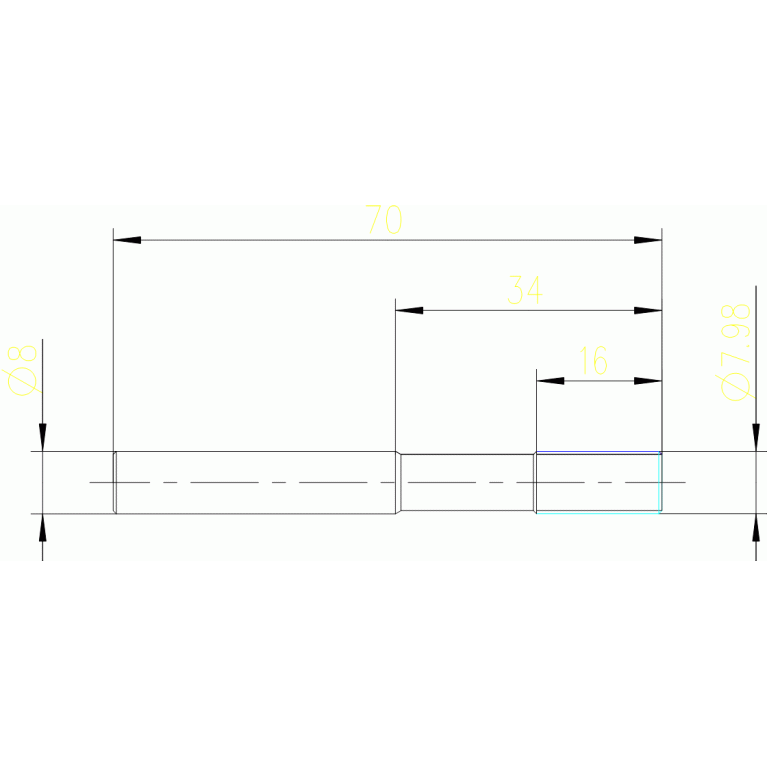

OAL Overall length

70 mm

Working process

No working processes available
