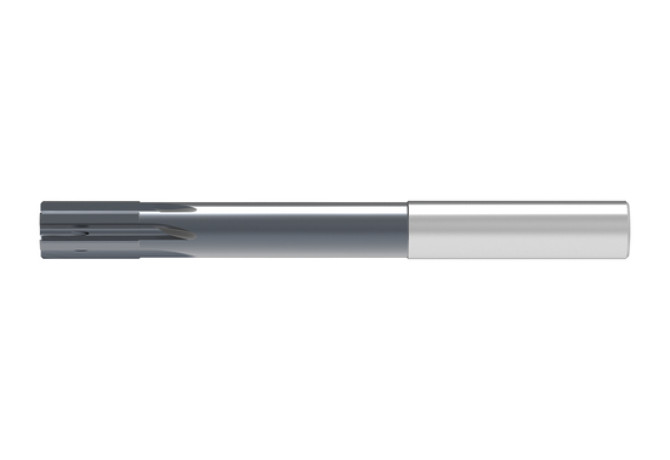

Главная Каталог продукции Toolunited 11 311-01 - Solid cylindrical reamer 4045817990

4045817990

Артикул: 4045817990

В наличии

В корзину

Описание

Характеристики

COATN Coating / Покрытие

AlTiN

COMPC Company code

CE - Ceratizit

DIN

ZYL01800105

FamilyProducts

VHM 1/100 MASCHINENREIBAHLE GERADE

FHH Flute helix hand

N - Hand of helix neutral

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

311-01 - Solid cylindrical reamer

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0180

LOC-03 DCONMS Diameter

18 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01800105

LPR Protruding length

104 mm

LS Shank length

48 mm

LU Usable length

97 mm

Name Identifying order number

4045817990

OAL Overall length

150 mm

Working process

No working processes available
