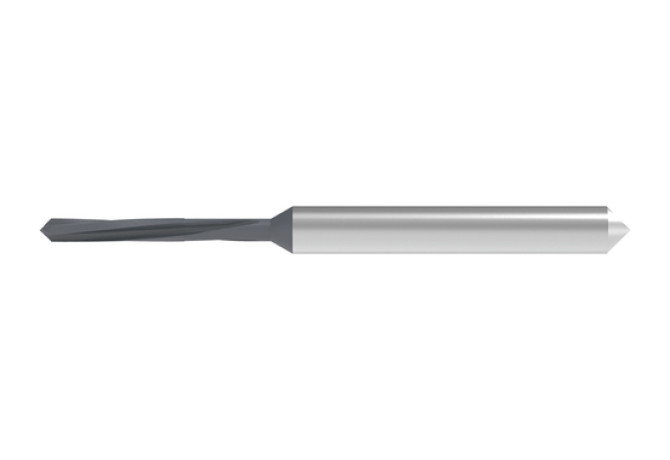

Главная Каталог продукции Toolunited 11 311-01 - Solid cylindrical reamer 4043103080

4043103080

Артикул: 4043103080

В наличии

В корзину

Описание

Характеристики

COATN Coating / Покрытие

TiAlN

COMPC Company code

CE - Ceratizit

DIN

ZYL00400105

FamilyProducts

VHM 1/100 MASCHINENREIBAHLE LINKSDRALL

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

311-01 - Solid cylindrical reamer

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0040

LOC-03 DCONMS Diameter

4 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00400105

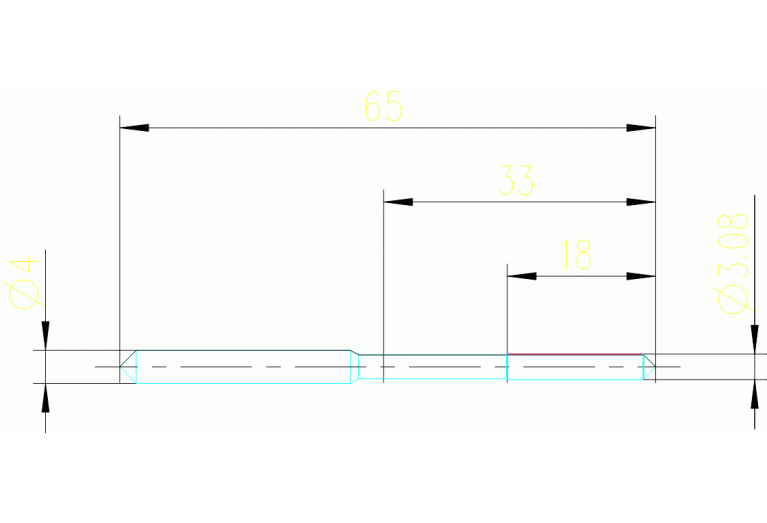

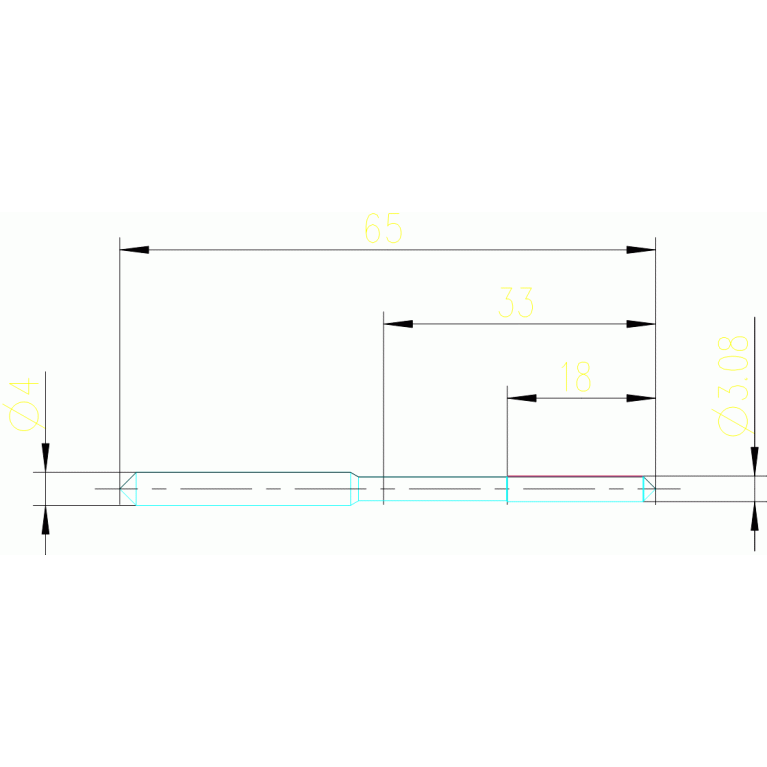

LPR Protruding length

39 mm

LS Shank length

28 mm

LU Usable length

33 mm

Name Identifying order number

4043103080

OAL Overall length

65 mm

Working process

No working processes available
