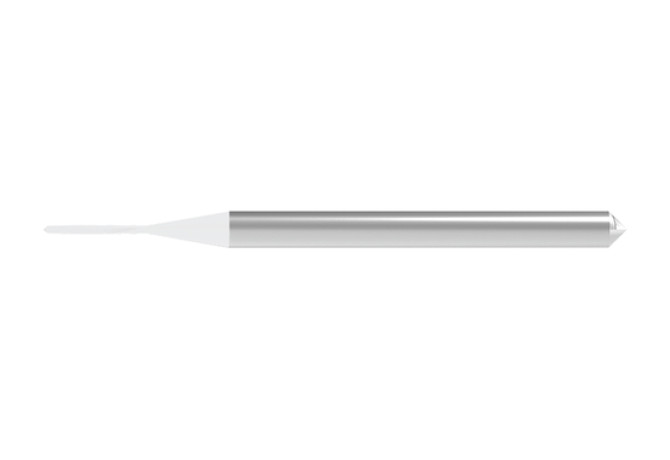

Главная Каталог продукции Toolunited 11 311-01 - Solid cylindrical reamer 4043000920

4043000920

Артикул: 4043000920

В наличии

В корзину

Описание

Характеристики

COATN Coating / Покрытие

ohne

COMPC Company code

CE - Ceratizit

DIN

ZYL00300105

FamilyProducts

VHM 1/100 MASCHINENREIBAHLE LINKSDRALL

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

311-01 - Solid cylindrical reamer

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0030

LOC-03 DCONMS Diameter

3 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00300105

LPR Protruding length

19 mm

LS Shank length

28 mm

LU Usable length

8 mm

Name Identifying order number

4043000920

OAL Overall length

45 mm

Working process

No working processes available
