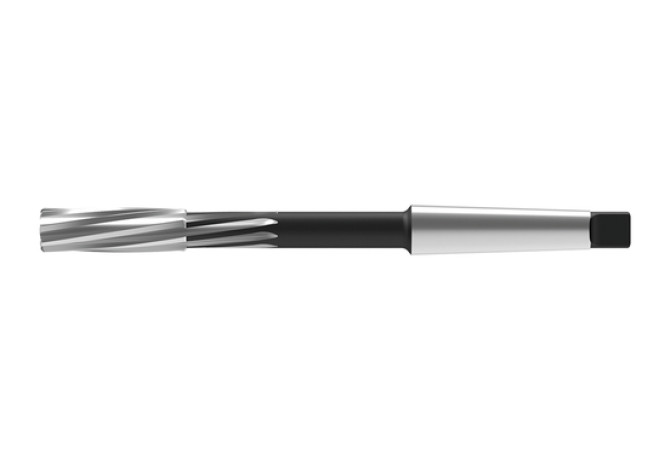

Главная Каталог продукции Toolunited 11 311-01 - Solid cylindrical reamer 40160200

40160200

Артикул: 40160200

В наличии

В корзину

Описание

Характеристики

COMPC Company code

CE - Ceratizit

Delivery state valid from

10/1/2021

DIN

MKG00202085

FamilyProducts

HSSE MASCHINENREIBAHLE LINKSDRALL

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

311-01 - Solid cylindrical reamer

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

MKG Morse taper

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0020

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MKG00202085

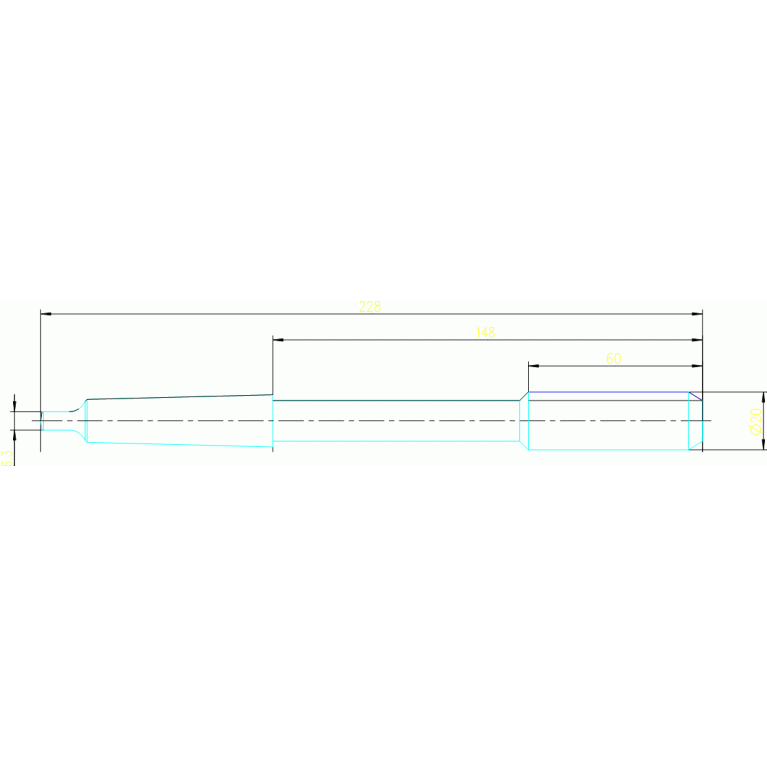

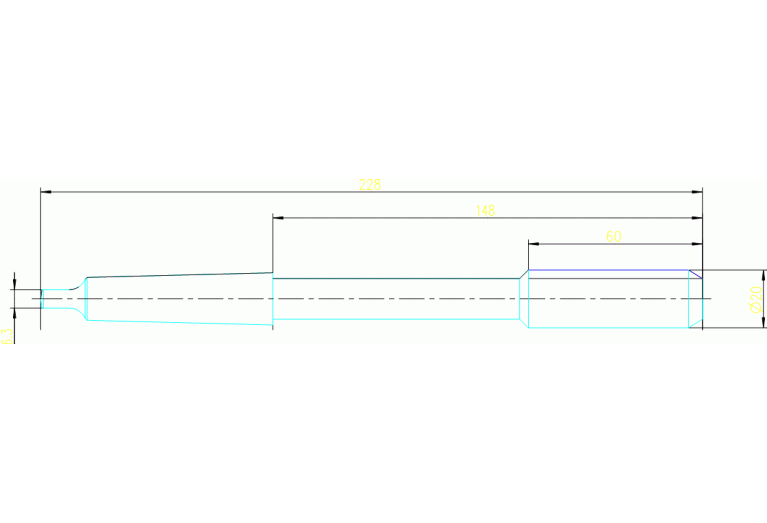

LPR Protruding length

150 mm

LU Usable length

148 mm

Name Identifying order number

40160200

OAL Overall length

228 mm

Working process

No working processes available
