Главная Каталог продукции Toolunited 11 311-01 - Solid cylindrical reamer 40110027

40110027

Артикул: 40110027

В наличии

В корзину

Описание

Характеристики

COATN Coating

ohne

COMPC Company code

CE - Ceratizit

Delivery state valid from

10/1/2021

DIN

ZYL00300105

FamilyProducts

HSSE MASCHINENREIBAHLE LINKSDRALL

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

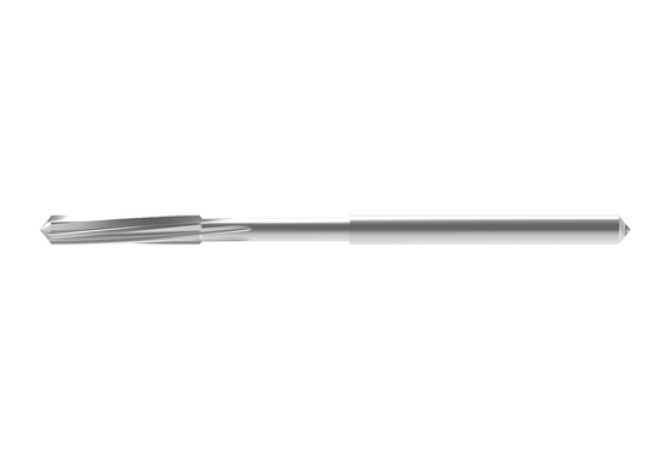

311-01 - Solid cylindrical reamer

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0030

LOC-03 DCONMS Diameter

3 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00300105

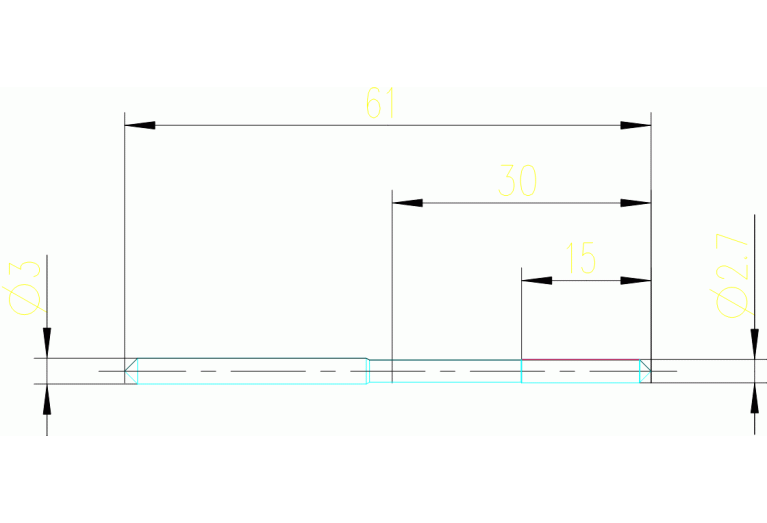

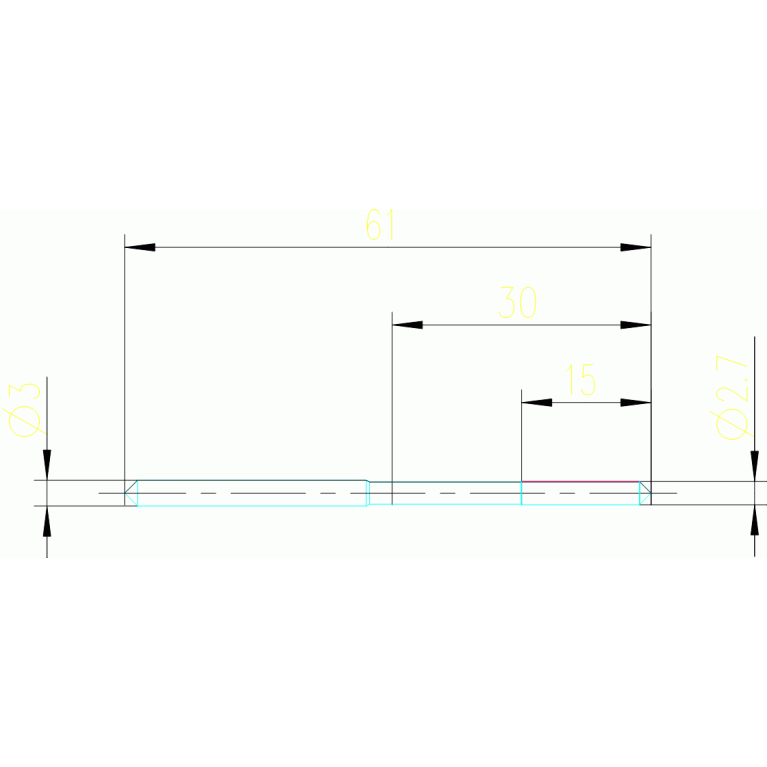

LPR Protruding length

35 mm

LS Shank length

28 mm

LU Usable length

30 mm

Name Identifying order number

40110027

OAL Overall length

61 mm

Working process

No working processes available
