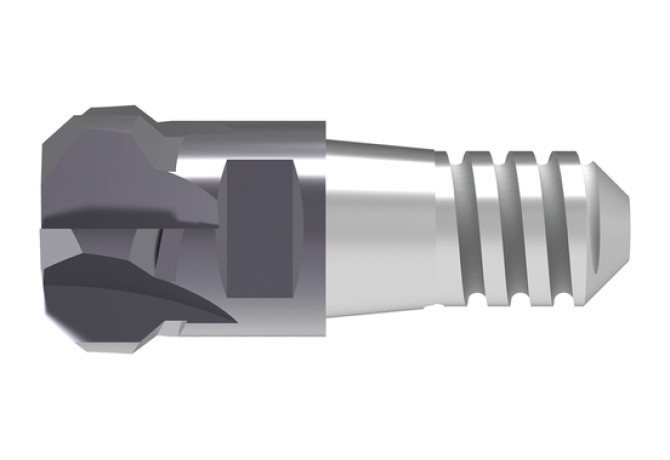

Главная Каталог продукции Toolunited 11 303-10 - Cutting stylus 52868100

52868100

Артикул: 52868100

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

4.8 mm

COATN Coating / Покрытие

Ti1100

COMPC Company code

CE - Ceratizit

DC Cutting diameter

7.5 mm

Delivery state valid from

10/1/2021

DIN

SAM00600105

DN Neck diameter

8 mm

FamilyProducts

VHM ENTGRATFRÄSER

FHA Flute helix angle

0 Degree

FHH Flute helix hand

N - Hand of helix neutral

GAMP Rake angle axial

2 Degree

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-10 - Cutting stylus

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAM Screw mounting MAPAL

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAM00600105

LPR Protruding length

11 mm

Name Identifying order number

52868100

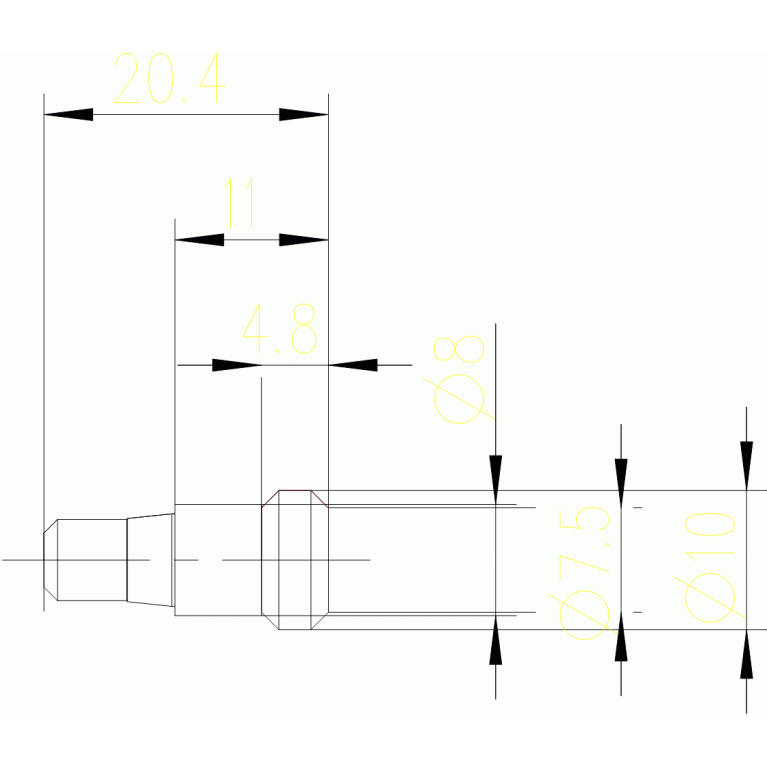

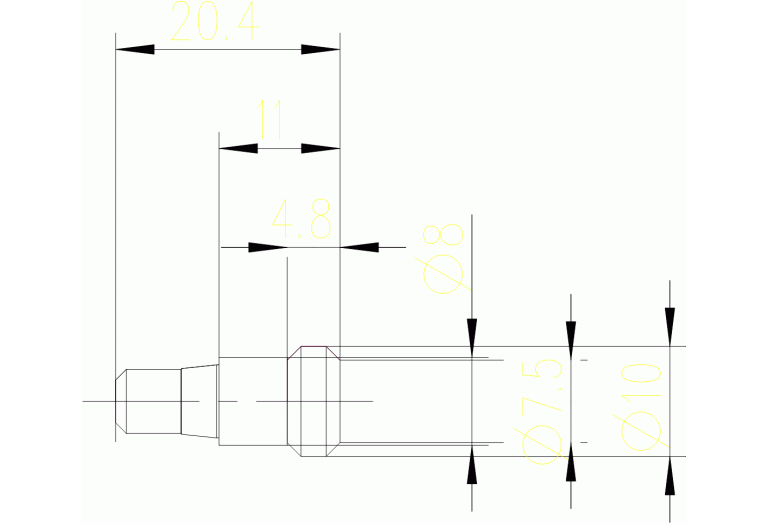

OAL Overall length

20.4 mm

PRFA Profile included angle

45 Degree

Working process

No working processes available

ZEFF Face effective cutting edge count
