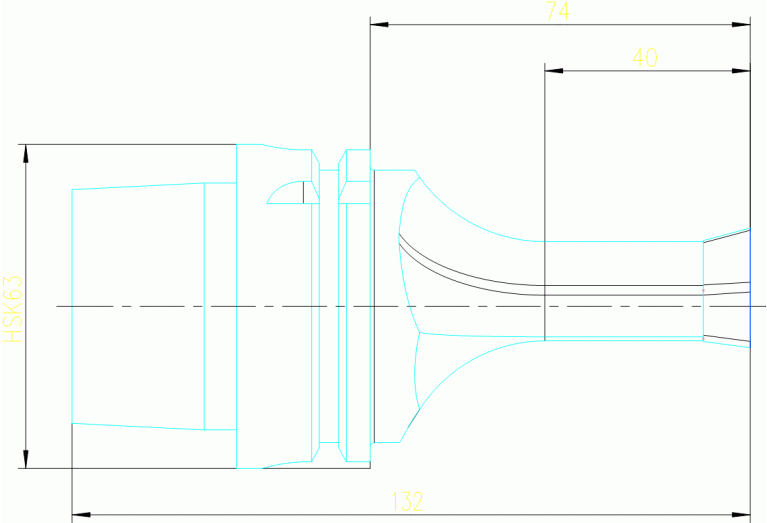

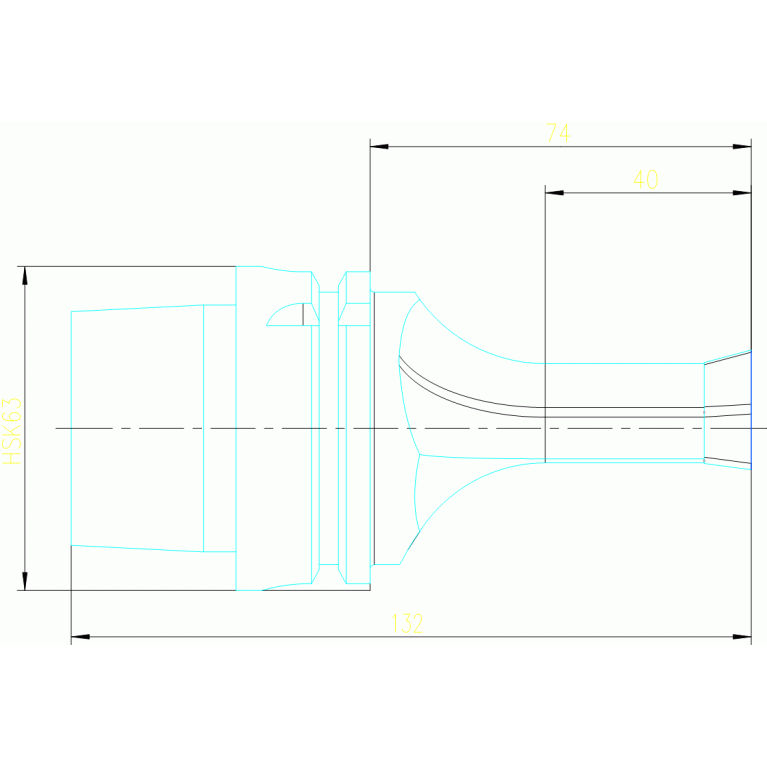

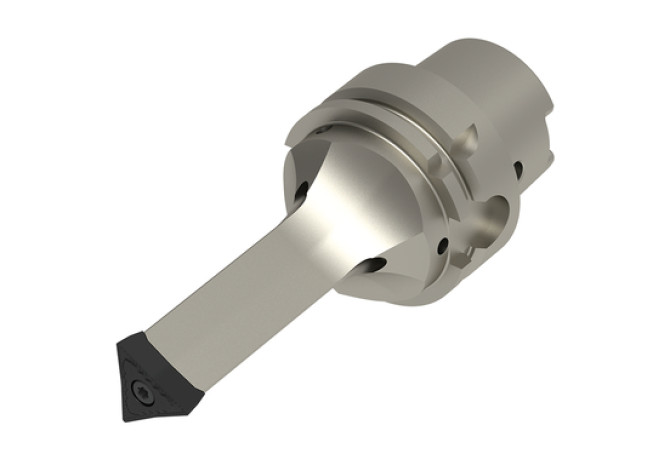

Главная Каталог продукции Toolunited 11 309-14 - System tool, neutral design for OD turning 7470000337

7470000337

Артикул: 7470000337

В наличии

В корзину

Описание

Характеристики

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

CE - Ceratizit

CXSC Coolant exit style code

6 - With coolant supply (discharge), peripheral/decentralized adjustable

Delivery state valid from

10/1/2021

DIN

HSK06300795

FamilyProducts

KLEMMHALTER

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

ISYC Subclass

309-14 - System tool, neutral design for OD turning

LF Functional length

100 mm

LH Head length

74 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

HSK Hollow taper shank

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0630

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK06300795

LPR Protruding length

100 mm

LTA Length tool assembly

100 mm

Name Identifying order number

7470000337

OAL Overall length

132 mm

STDNO Standard

ISO 12164-3

Working process

No working processes available
