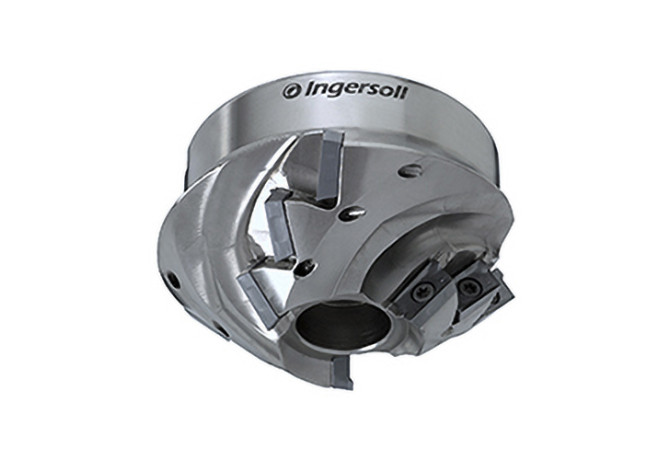

Главная Каталог продукции Toolunited 11 308-08 - Full-side angular slot milling cutter 22L3C035050F1R00

22L3C035050F1R00

22L3C035050F1R00 22L3C035050F1R00 22L3C035050F1R00 22L3C035050F1R00

22L3C035050F1R00

Ingersoll
Артикул: 3040565
В наличии
В корзину
Описание
Характеристики
BI Block index
1
CCONMS Connection count machine side
1
CDX Cutting depth maximum
33.5 mm
CICT Cutting item count
9
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit

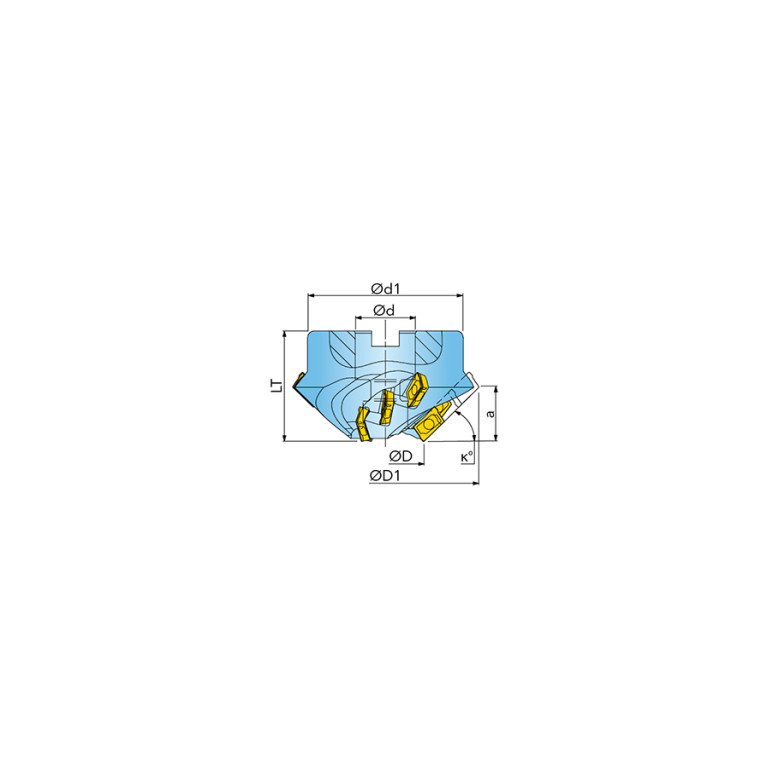

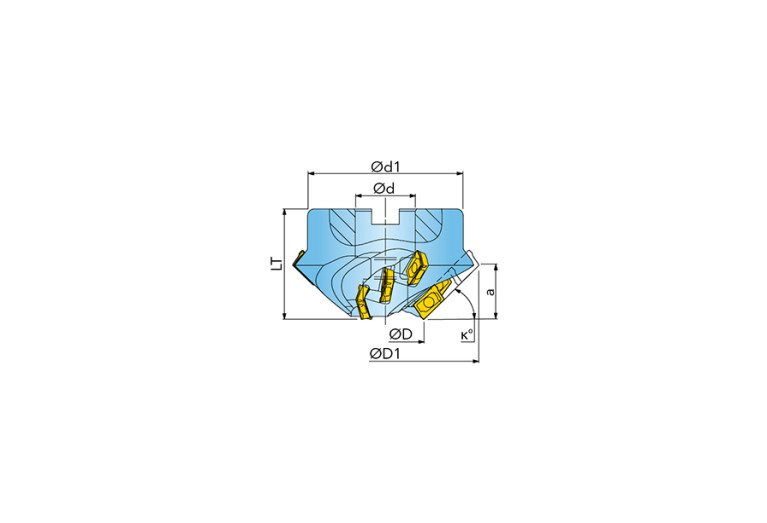

DC Cutting diameter
35 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
53 mm
Delivery state
LH - Stocked
DHUB Hub diameter
45 mm
DIN
FDA02202200
FamilyProducts
Chamfer Mill 22 3C...F
HAND Cutting direction
R - Right
ID Technical product number
3040565
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISYC Subclass
308-08 - Full-side angular slot milling cutter
KAPR Tool cutting edge angle
75 Degree
LOC-01 BI Block index
1
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
IL-WSP-17
LOC-02 BI Block index
2
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
IL-WSP-18
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0220
LOC-03 DCONMS Diameter
22 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02202200

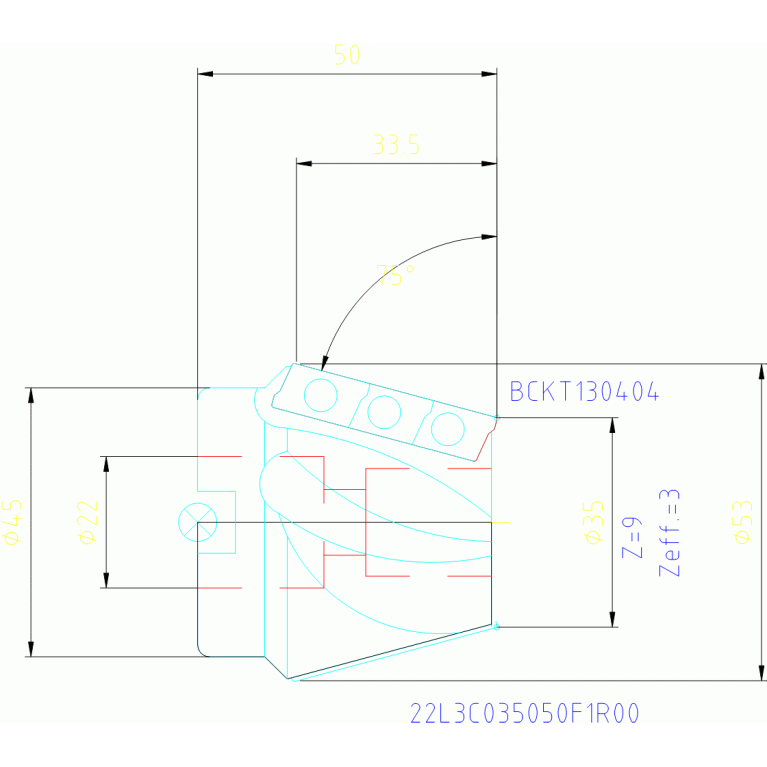

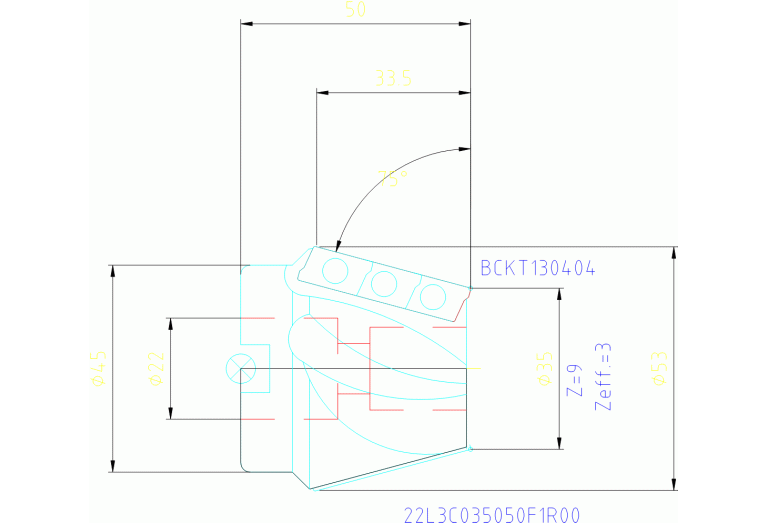

Name Identifying order number
22L3C035050F1R00
OAL Overall length
50 mm
Working process
No working processes available
WT Weight of item
0.33 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
