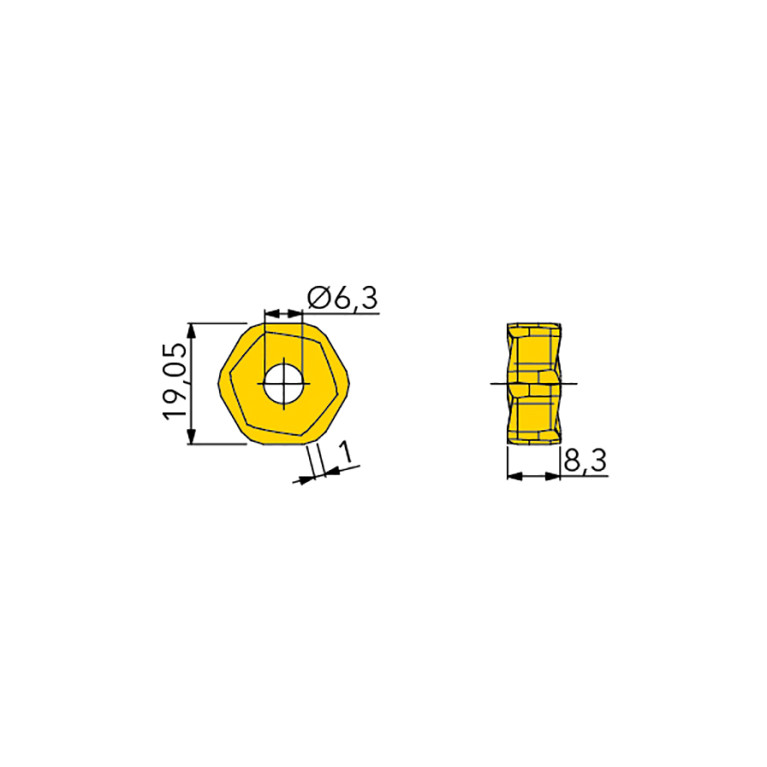

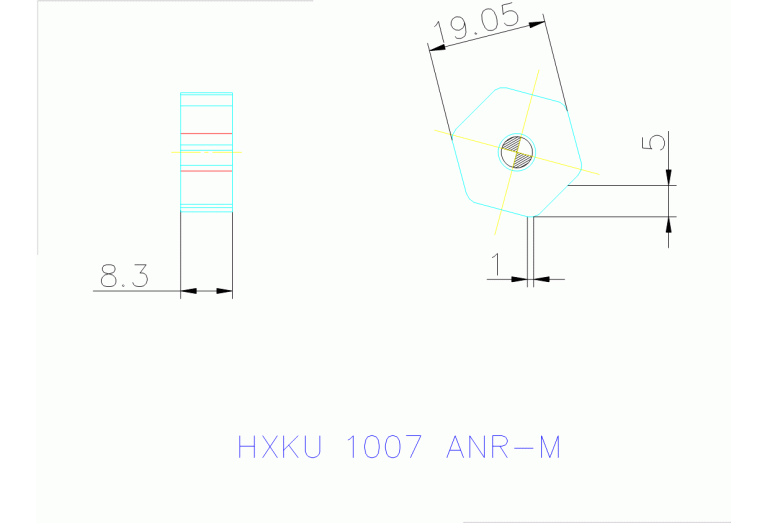

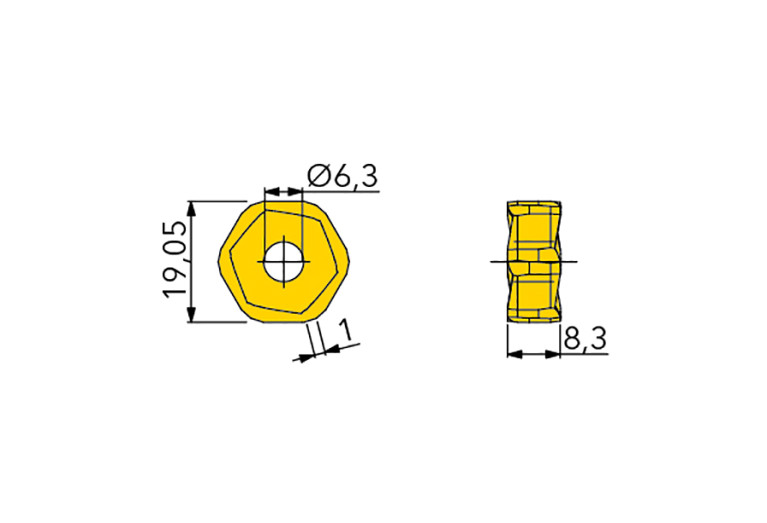

HNGU1007ANTR-M IN6537

HNGU1007ANTR-M IN6537 HNGU1007ANTR-M IN6537 HNGU1007ANTR-M IN6537 HNGU1007ANTR-M IN6537

HNGU1007ANTR-M IN6537

Ingersoll
Артикул: 6321159
В наличии
В корзину
Описание
Характеристики
AN Clearance angle major
0 Degree
AS Clearance angle wiper edge
0 Degree
CB Chip breaker face count
2 - With chip breaker on both sides
CECC Cutting edge condition code
T - Chamfered
COATN Coating
Al2O3+TiN
COMPC Company code
IL - Ingersoll
D1 Fixing hole diameter
6.3 mm
Delivery state
NL - Discontinued
DIN
HN1007 5N
EPSR Insert included angle
120 Degree
FamilyProducts
insert, 12-edged positive geometry
GRDMFG Grade manufacturers designation
IN6537
GRDPRIO Standard designation of the grade main application
P30-P45
IC Inscribed circle diameter
19.05 mm
ID Technical product number
6321159
IFS Insert mounting style code
5 - Special production, e.g. trough clamping
IH Insert hand
R - Right
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-08 - Hexagonal insert
KRINS Cutting edge angle major
45 Degree
L Cutting edge length
7.24 mm
LE Cutting edge effective length
5 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
HN1007 5N
Name Identifying order number
HNGU1007ANTR-M IN6537
RE Corner radius
0 mm
S Insert thickness
8.3 mm
S1 Insert thickness total
8.3 mm
STDDES Standard designation
HNGU1007ANTR
TCINS Tolerance class insert
G
Working process
No working processes available
