Главная Каталог продукции Toolunited 11 201-08 - Hexagonal insert HNCF0905ANN IN10K

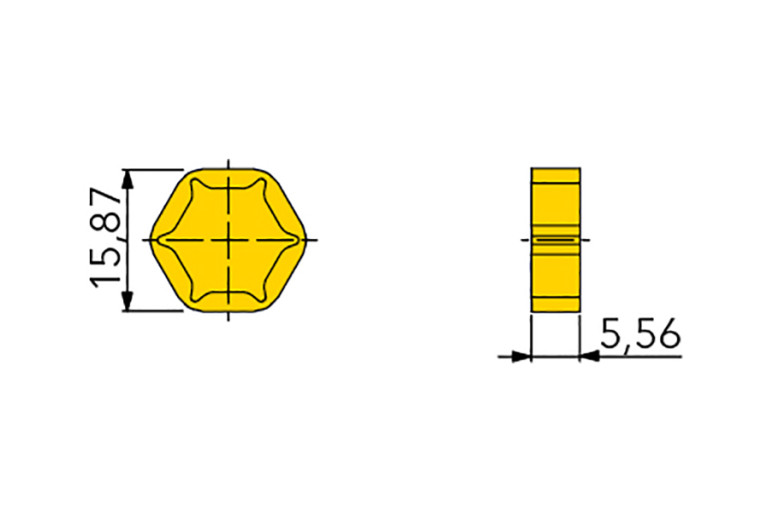

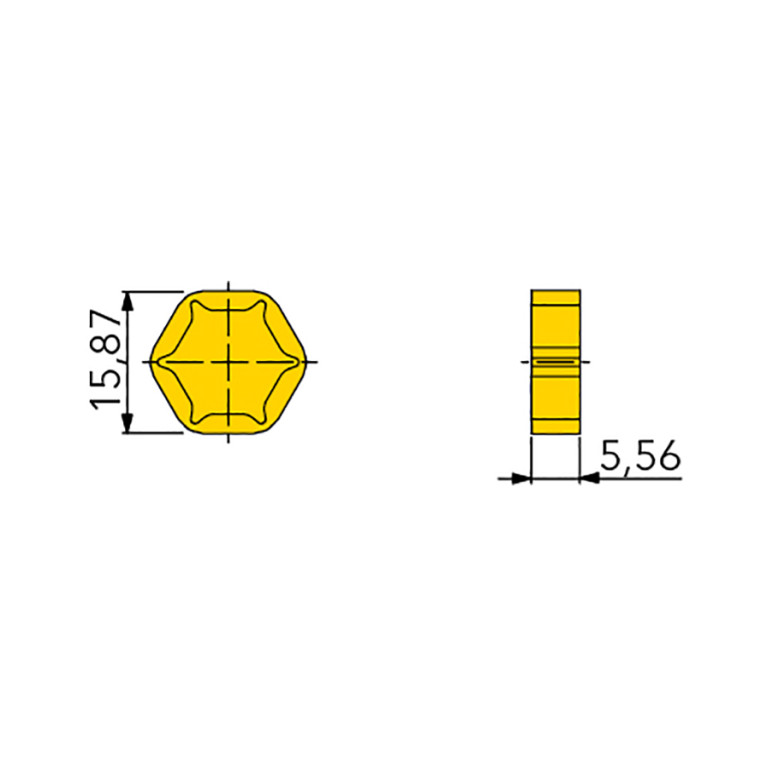

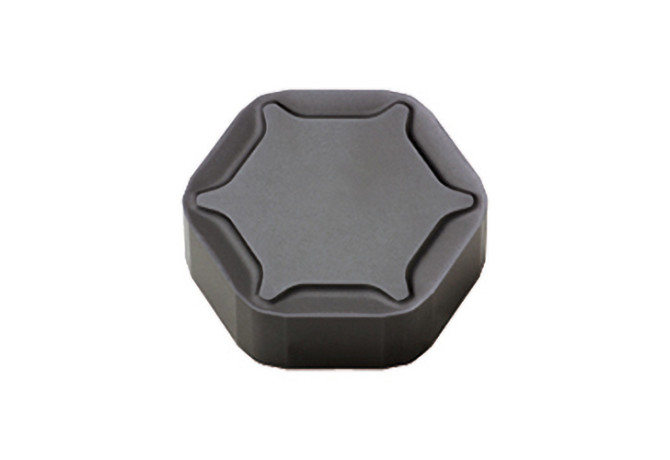

HNCF0905ANN IN10K

Артикул: 5804267

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

AS Clearance angle wiper edge

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

COMPC Company code

IL - Ingersoll

Delivery state

LH - Stocked

DIN

HN0905 1N

EPSR Insert included angle

120 Degree

FamilyProducts

insert, 12/24-edged hexagon insert

GRD2ND Standard designation of the grade 2nd application

K10-K25

GRDMFG Grade manufacturers designation

IN10K

GRDPRIO Standard designation of the grade main application

N10-N25

IC Inscribed circle diameter

15.88 mm

ID Technical product number

5804267

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-08 - Hexagonal insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

5.4 mm

LE Cutting edge effective length

4.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

HN0905 1N

Name Identifying order number

HNCF0905ANN IN10K

S Insert thickness

5.39 mm

S1 Insert thickness total

5.39 mm

STDDES Standard designation

HNCF0905ANN

TCINS Tolerance class insert

Working process

No working processes available
