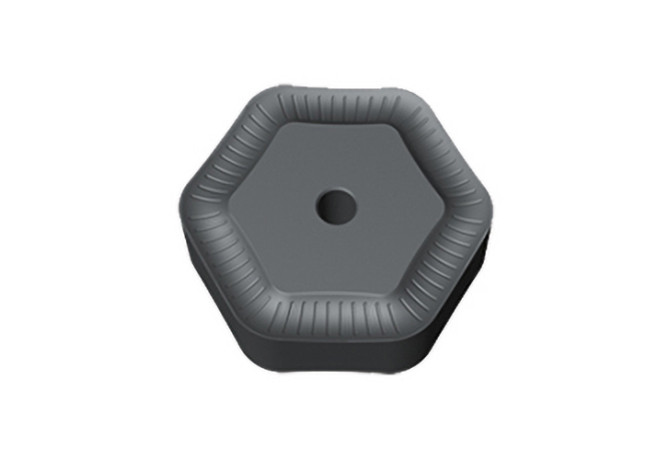

HNCF090530TN-HR IN4030

Артикул: 5853682

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

T - Chamfered

COATN Coating

TiAlN+AlCrO

COMPC Company code

IL - Ingersoll

Delivery state

NL - Discontinued

DIN

HN0905 1N

EPSR Insert included angle

120 Degree

FamilyProducts

insert, 12/24-edged hexagon insert with R3,0

GRD2ND Standard designation of the grade 2nd application

M15-M30

GRD3RD Standard designation of the grade 3rd application

K20-K30

GRDMFG Grade manufacturers designation

IN4030

GRDPRIO Standard designation of the grade main application

P20-P40

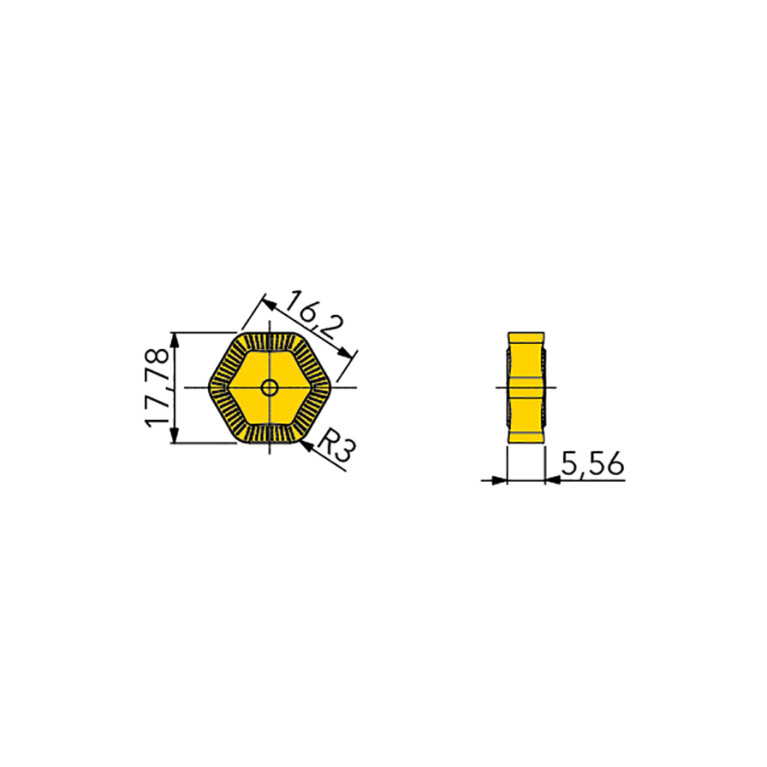

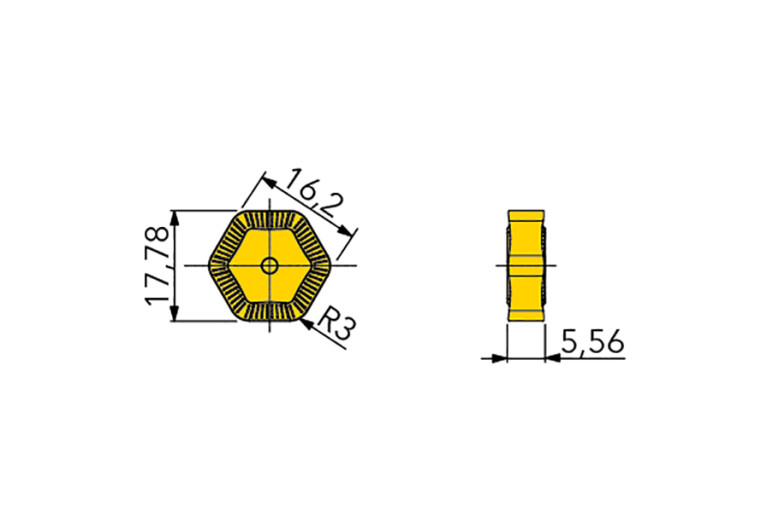

IC Inscribed circle diameter

16.2 mm

ID Technical product number

5853682

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-08 - Hexagonal insert

L Cutting edge length

5.9 mm

LE Cutting edge effective length

4.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

HN0905 1N

Name Identifying order number

HNCF090530TN-HR IN4030

RE Corner radius

3 mm

S Insert thickness

5.19 mm

S1 Insert thickness total

5.19 mm

STDDES Standard designation

HNCF090530TN

TCINS Tolerance class insert

Working process

No working processes available
