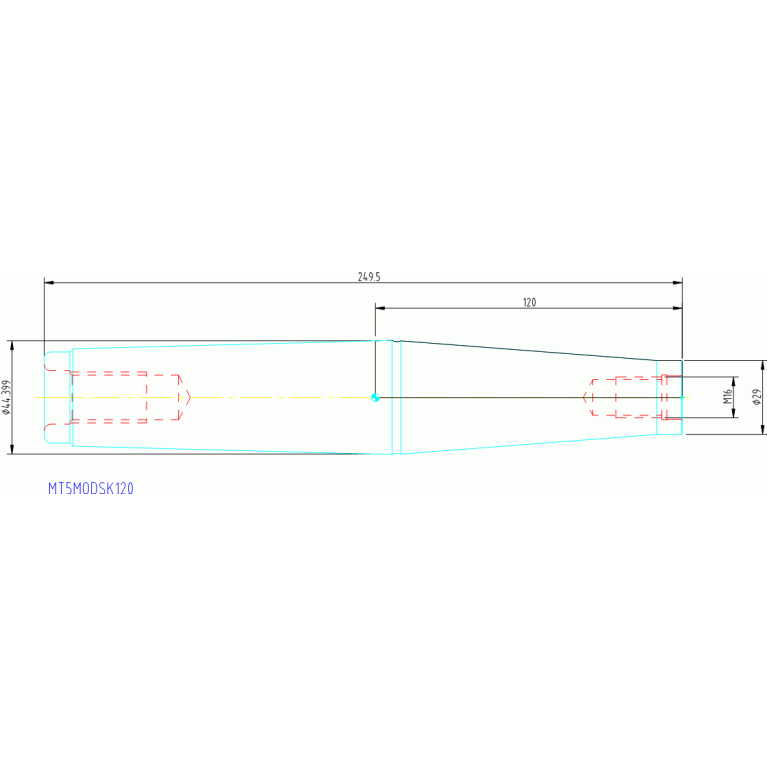

MT5MOD16SK120
MT5MOD16SK120
Артикул:
4553200
В наличии
Характеристики
BD Body diameter
29 mm
CCSWS Connection code style
5
CCUWS Connection code unit base
0
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Connection size code
0160
DCINTF Interference cutting diameter
29 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DF Flange diameter
44.399 mm
DIN
MKG00501085
FamilyProducts
Extension with Morse Taper
HAND Cutting direction
N - Neutral
ID Technical product number
4553200
Interface codes
J6 /
ISYC Subclass
401-00 - Adaptive item converter, extender, reducer unspecified
LB Body length 1
120 mm
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0160
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
MOD01600115
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
IL-K-974
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
MKG Morse taper
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0050
LOC-03 DCONMS Diameter
45 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
MKG00501085
LPR Protruding length
120 mm
Name Identifying order number
MT5MOD16SK120
OAL Overall length
249.5 mm
THSZWS Connection thread nominal size workpiece side
M16
