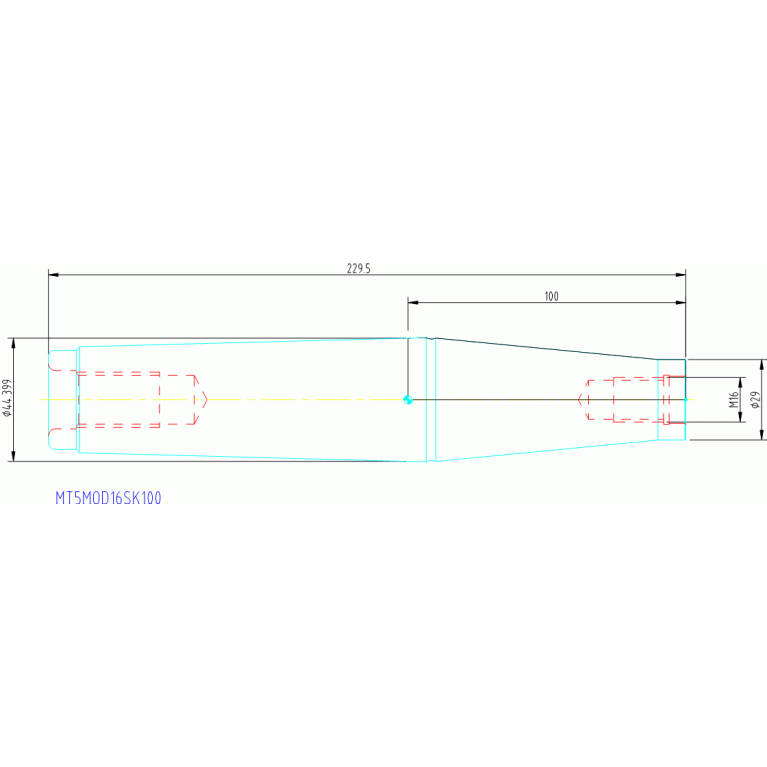

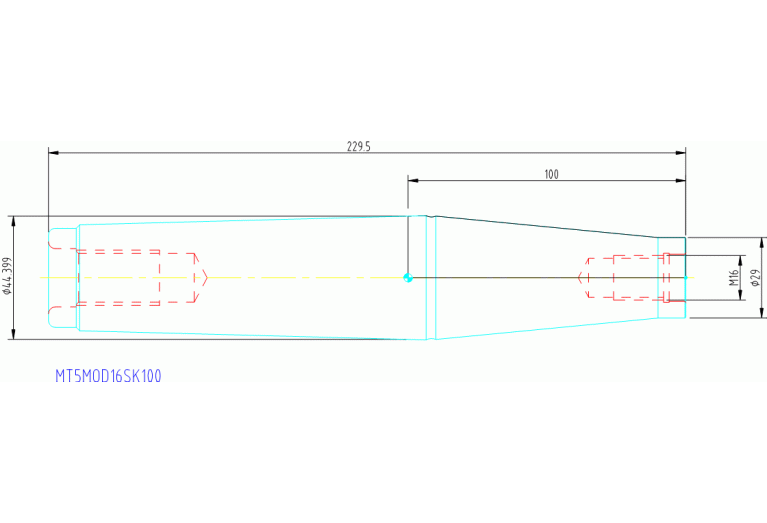

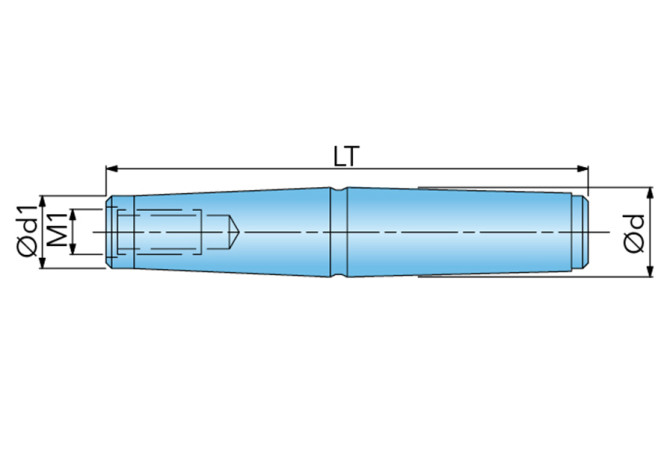

Главная Каталог продукции Toolunited 11 401-00 - Adaptive item converter, extender, reducer unspecified MT5MOD16SK100

MT5MOD16SK100

Артикул: 4553199

В наличии

В корзину

Описание

Характеристики

BD Body diameter

29 mm

CCSWS Connection code style

CCUWS Connection code unit base

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

0 - Without coolant exit

CZCWS Connection size code

0160

DCINTF Interference cutting diameter

29 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LH - Stocked

DF Flange diameter

44.399 mm

DIN

MKG00501085

FamilyProducts

Extension with Morse Taper

HAND Cutting direction

N - Neutral

ID Technical product number

4553199

Interface codes

J6 /

ISYC Subclass

401-00 - Adaptive item converter, extender, reducer unspecified

LB Body length 1

100 mm

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01 CZCWS Connection size code

0160

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

MOD01600115

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

IL-K-974

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

MKG Morse taper

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0050

LOC-03 DCONMS Diameter

45 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MKG00501085

LPR Protruding length

100 mm

Name Identifying order number

MT5MOD16SK100

OAL Overall length

229.5 mm

THSZWS Connection thread nominal size workpiece side

M16
