Главная Каталог продукции Toolunited 11 401-00 - Adaptive item converter, extender, reducer unspecified MT3MOD12SK085

MT3MOD12SK085

Артикул: 4553190

В наличии

В корзину

Описание

Характеристики

BD Body diameter

21 mm

CCSWS Connection code style

CCUWS Connection code unit base

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

0 - Without coolant exit

CZCWS Connection size code

0120

DCINTF Interference cutting diameter

21 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LH - Stocked

DIN

MKG00301085

FamilyProducts

Extension with Morse Taper

HAND Cutting direction

N - Neutral

ID Technical product number

4553190

Interface codes

J6 /

ISYC Subclass

401-00 - Adaptive item converter, extender, reducer unspecified

LB Body length 1

85 mm

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01 CZCWS Connection size code

0120

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

MOD01200115

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

IL-K-703

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

MKG Morse taper

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0030

LOC-03 DCONMS Diameter

24 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MKG00301085

LPR Protruding length

85 mm

Name Identifying order number

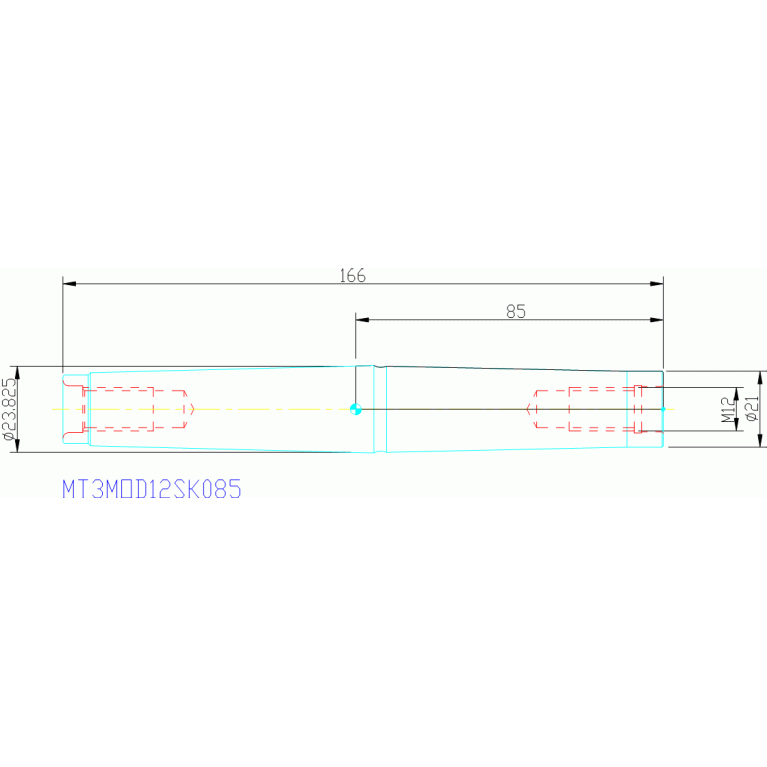

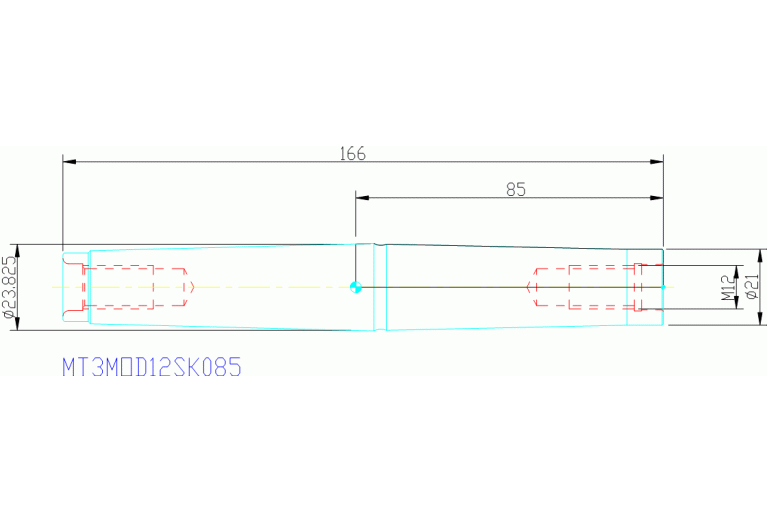

MT3MOD12SK085

OAL Overall length

166 mm

THSZWS Connection thread nominal size workpiece side

M12

WT Weight of item

0.454 kg
