Главная Каталог продукции Toolunited 11 401-00 - Adaptive item converter, extender, reducer unspecified CDPM10SRK4X40

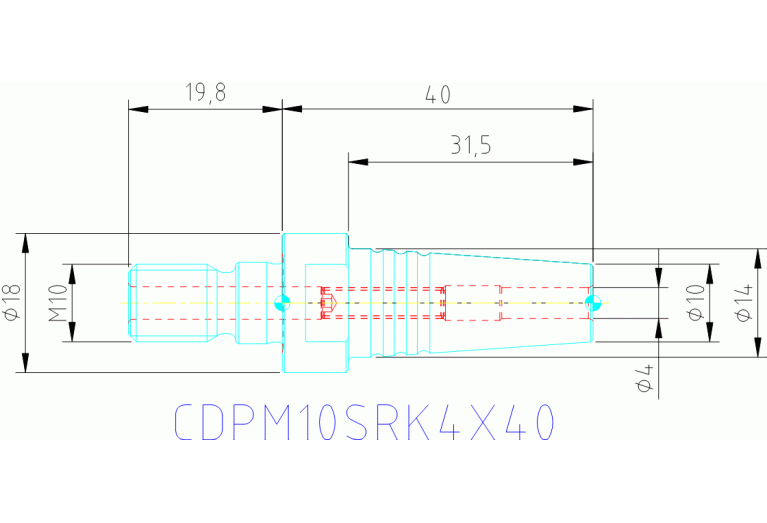

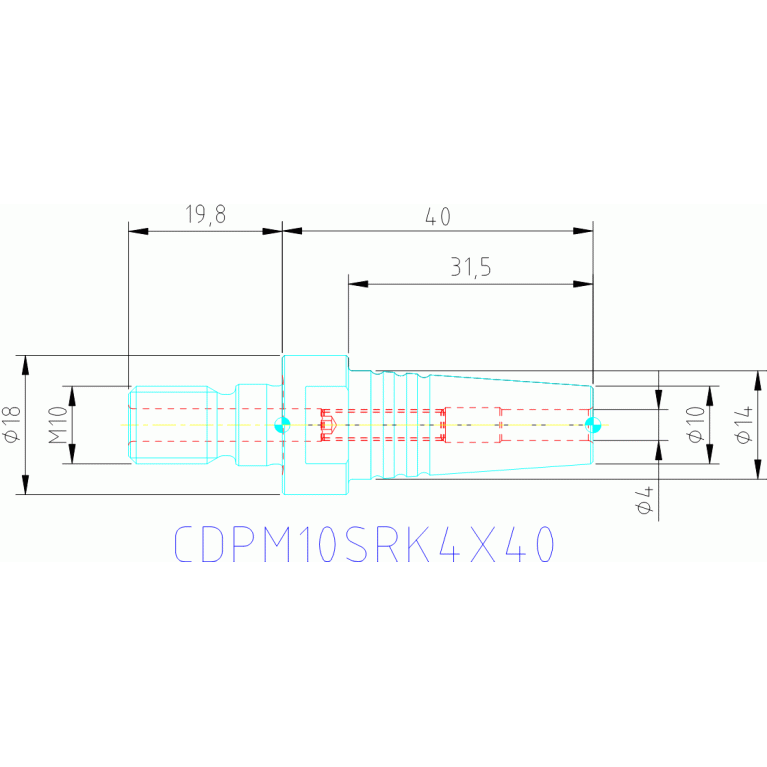

CDPM10SRK4X40

Артикул: 4540718

В наличии

В корзину

Описание

Характеристики

BD Body diameter

10 mm

BD Body diameter 2

14 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Connection size code

0040

DCONWS Diameter

4 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LH - Stocked

DIN

MOD01000115

FamilyProducts

Screw-In Type shrinking adaption (thermical)

HAND Cutting direction

N - Neutral

ID Technical product number

4540718

Interface codes

J6 /

ISYC Subclass

401-00 - Adaptive item converter, extender, reducer unspecified

LB Body length 1

31.5 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

1 Metric with coolant

LOC-01 CZCWS Connection size code

0040

LOC-01 DCONWS Diameter

4 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL00400115

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MOD01000115

LPR Protruding length

40 mm

LSCN Clamping length minimum

19 mm

LSCX Clamping length maximum

19 mm

Name Identifying order number

CDPM10SRK4X40

WT Weight of item

0.07 kg
