Главная Каталог продукции Toolunited 11 203-02 - Replaceable insert, flat LPF2700R01 IN2505

LPF2700R01 IN2505

Артикул: 6313500

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

0 - Without coolant exit

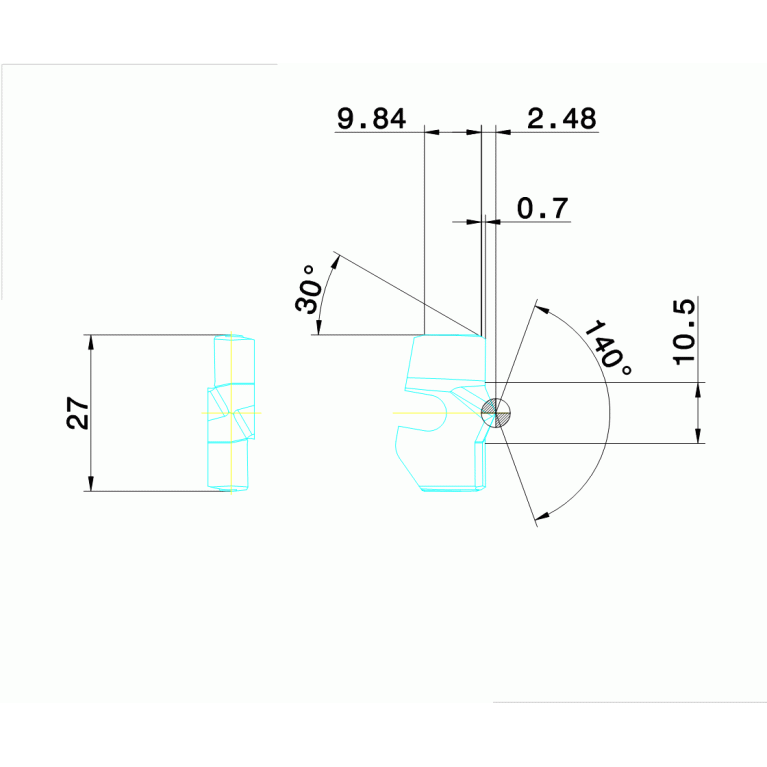

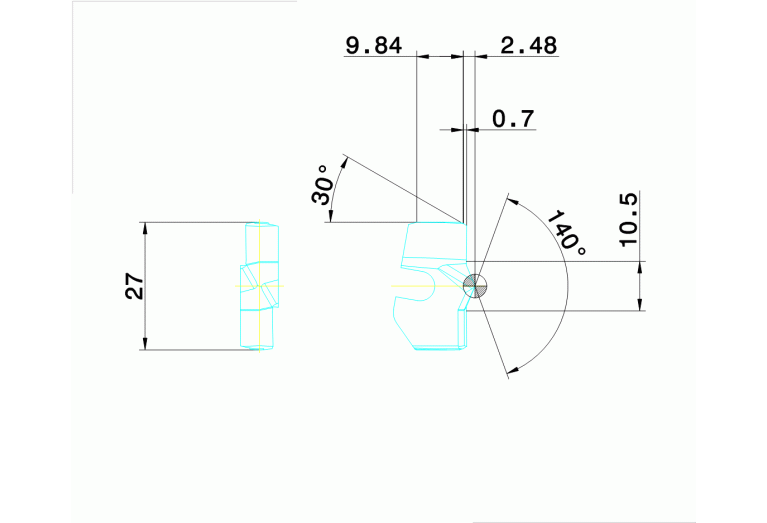

DC Cutting diameter

27 mm

Delivery state

LA - Soon discontinued

DIN

IL-BKLPX270R

FamilyProducts

Spade-Twist Boring Heads

GRD2ND Standard designation of the grade 2nd application

M15-M35

GRD3RD Standard designation of the grade 3rd application

K20-K40

GRDMFG Grade manufacturers designation

IN2505

GRDPRIO Standard designation of the grade main application

P15-P30

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

6313500

Interface codes

J6 /

ISYC Subclass

203-02 - Replaceable insert, flat

LF Functional length

14.9 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

IL-BKLPX270R

Name Identifying order number

LPF2700R01 IN2505

NOF Flute count

OAL Overall length

17.4 mm

OALN

14.9 mm

PL Point length

2.5 mm

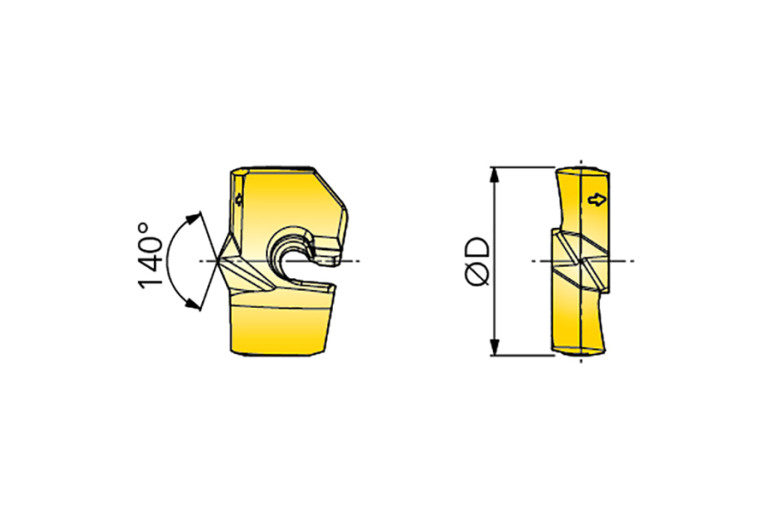

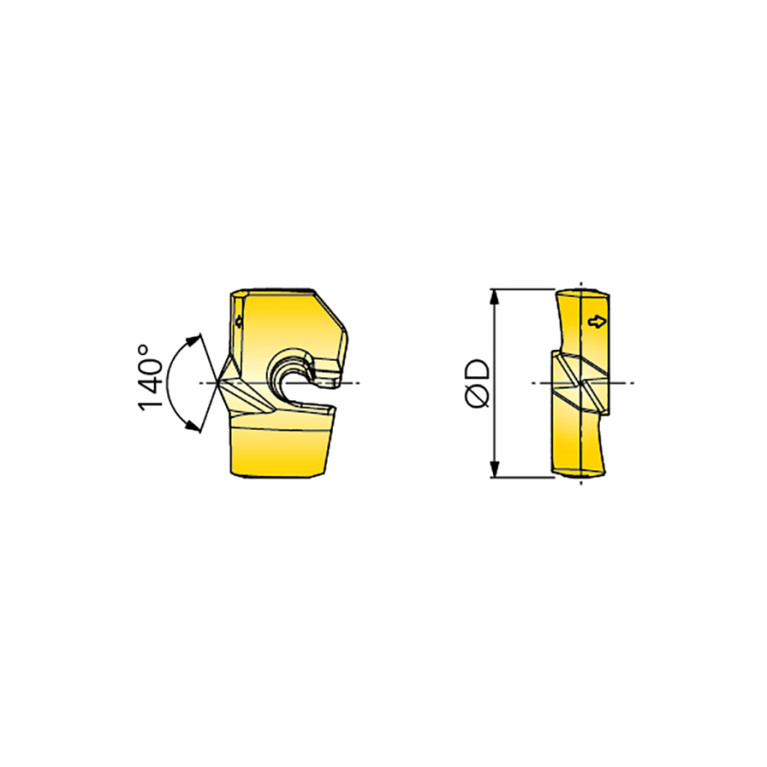

SIG Point angle 1st step

140 Degree

Working process

BVB - Drilling
