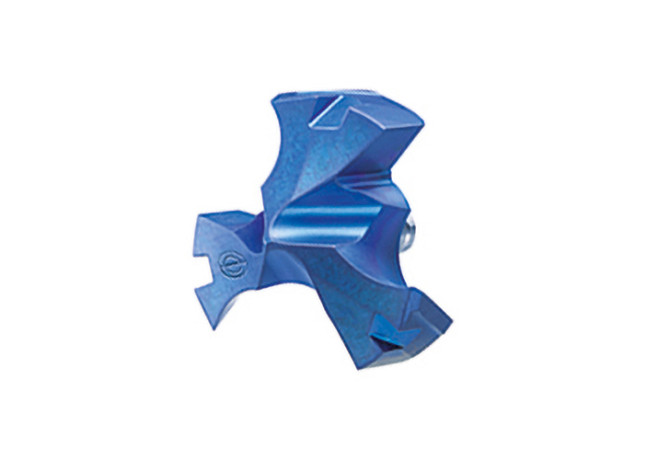

Главная Каталог продукции Toolunited 11 203-03 - Replaceable insert flatted with chip flute FPC1850R01 IN2205

FPC1850R01 IN2205

Артикул: 6336632

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

0 - Without coolant exit

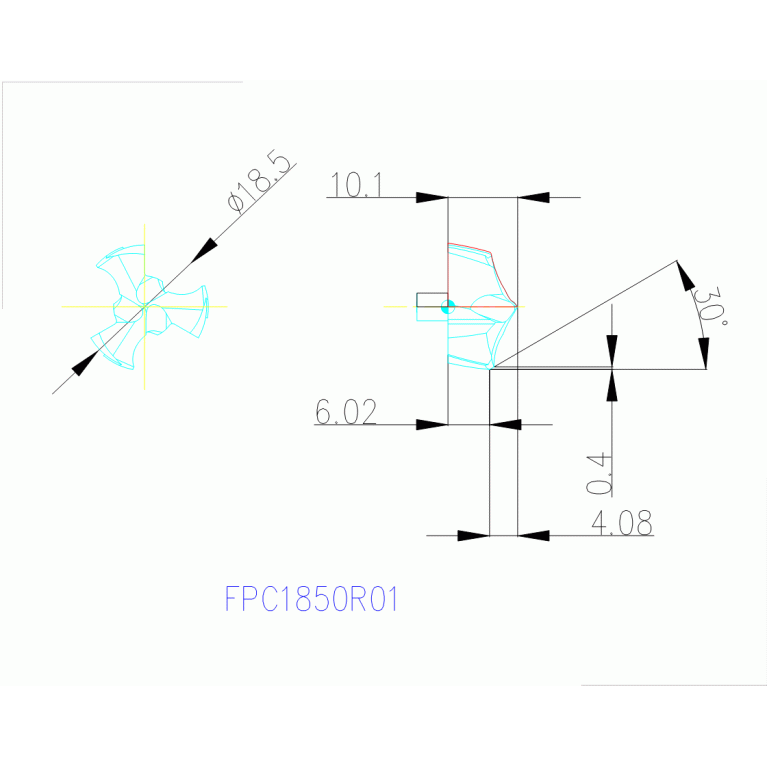

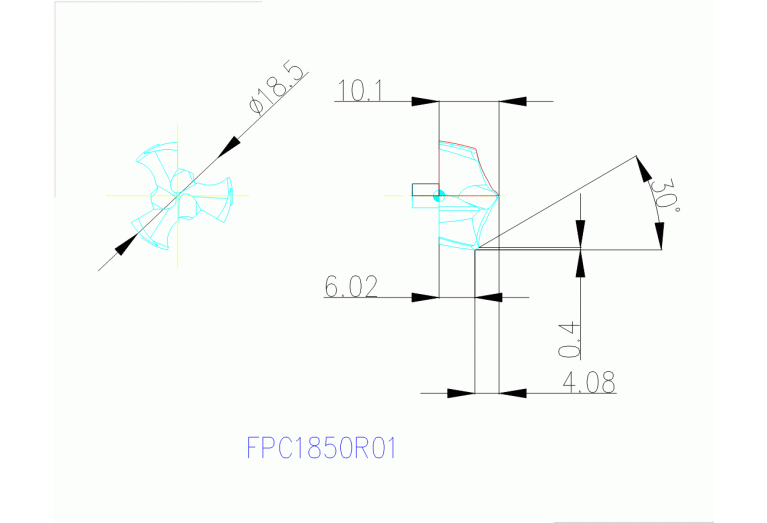

DC Cutting diameter

18.5 mm

Delivery state

LA - Soon discontinued

DIN

IL-BKFPX180R

FamilyProducts

TwistSFeed Boring Heads

GRD3RD Standard designation of the grade 3rd application

K20-K40

GRDMFG Grade manufacturers designation

IN2205

GRDPRIO Standard designation of the grade main application

P20-P40

GRDSYC Grind style code

HAND Cutting direction

R - Right

ID Technical product number

6336632

Interface codes

J6 /

ISYC Subclass

203-03 - Replaceable insert flatted with chip flute

LF Functional length

6.02 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

IL-BKFPX180R

LPR Protruding length

10.1 mm

Name Identifying order number

FPC1850R01 IN2205

NOF Flute count

OAL Overall length

10.1 mm

OALN

6.02 mm

PL Point length

4.08 mm

SIG Point angle 1st step

140 Degree

Working process

BVB - Drilling
