Главная Каталог продукции Toolunited 11 303-09 - Thread end mill MTECD 08047C14 1.0ISO IN2005

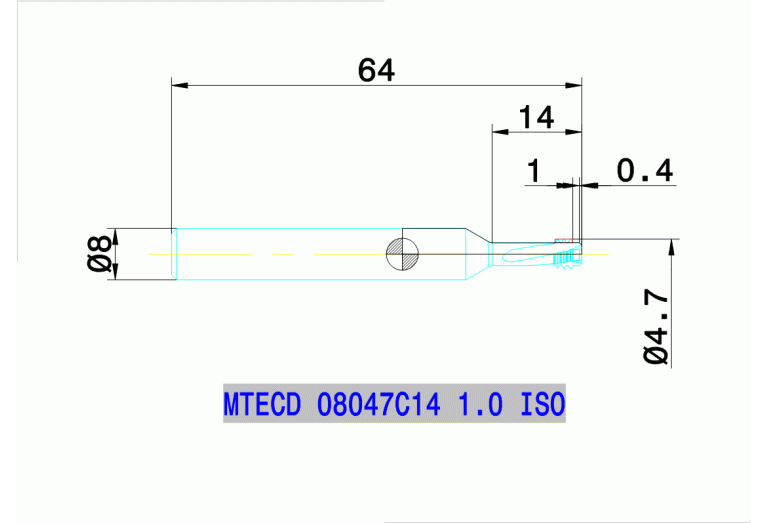

MTECD 08047C14 1.0ISO IN2005

Артикул: 5667197

В наличии

В корзину

Описание

Характеристики

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating

TiAIN

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

4.7 mm

Delivery state

LA - Soon discontinued

DIN

ZYL00800115

FamilyProducts

Solid Carbide short ISO-Threading / Drilling internal (left version)

GRD2ND Standard designation of the grade 2nd application

HC-K40

GRDMFG Grade manufacturers designation

IN2005

GRDPRIO Standard designation of the grade main application

HC-M35

HAND Cutting direction

R - Right

ID Technical product number

5667197

Interface codes

J6 /

ISYC Subclass

303-09 - Thread end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800115

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

MTECD 08047C14 1.0ISO IN2005

OAL Overall length

64 mm

THFT Thread form type

TP Thread pitch

1 mm

Working process

No working processes available

WT Weight of item

0.035 kg

ZEFP Peripheral effective cutting edge count
