50825040
50825040
Артикул:
50825040
В наличии
Характеристики

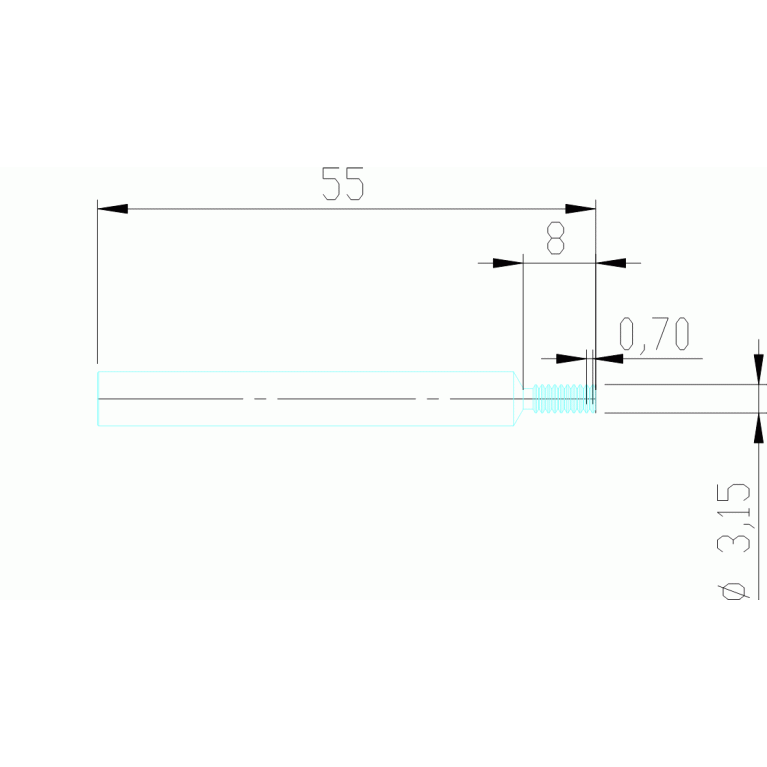

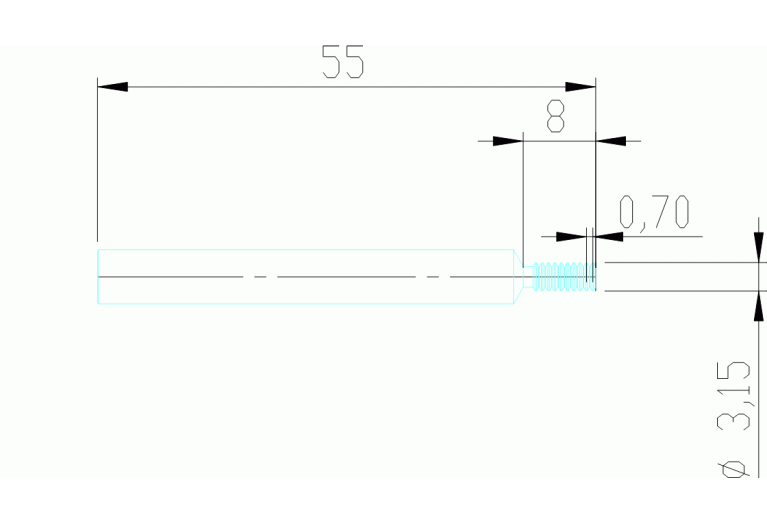

APMX Depth of cut maximum
8 mm
COATN Coating
TiAlN
COMPC Company code
CE - Ceratizit
DCX Cutting diameter maximum
3.15 mm
Delivery state valid from
10/1/2021
FamilyProducts
VHM SCHAFTGEWINDEFRÄSER
FHH Flute helix hand
R - Hand of helix right
Interface codes
/
ISYC Subclass
303-09 - Thread end mill
LOC-03 DCONMS Diameter
6 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
MILTTY Mill tool type ISO
T - Thread cutter
Name Identifying order number
50825040
OAL Overall length
55 mm
THFT Thread form type
M
TP Thread pitch
0.7 mm
Working process
No working processes available
ZEFP Peripheral effective cutting edge count
3
