APMX Depth of cut maximum

34 mm

COATN Coating

TiAlN

COMPC Company code

CE - Ceratizit

DCX Cutting diameter maximum

12.7 mm

FamilyProducts

VHM SCHAFTGEWINDEFRÄSER M. SENKFASE

FHH Flute helix hand

R - Hand of helix right

Interface codes

ISYC Subclass

303-09 - Thread end mill

LOC-03 DCONMS Diameter

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LS Shank length

48 mm

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

50823058

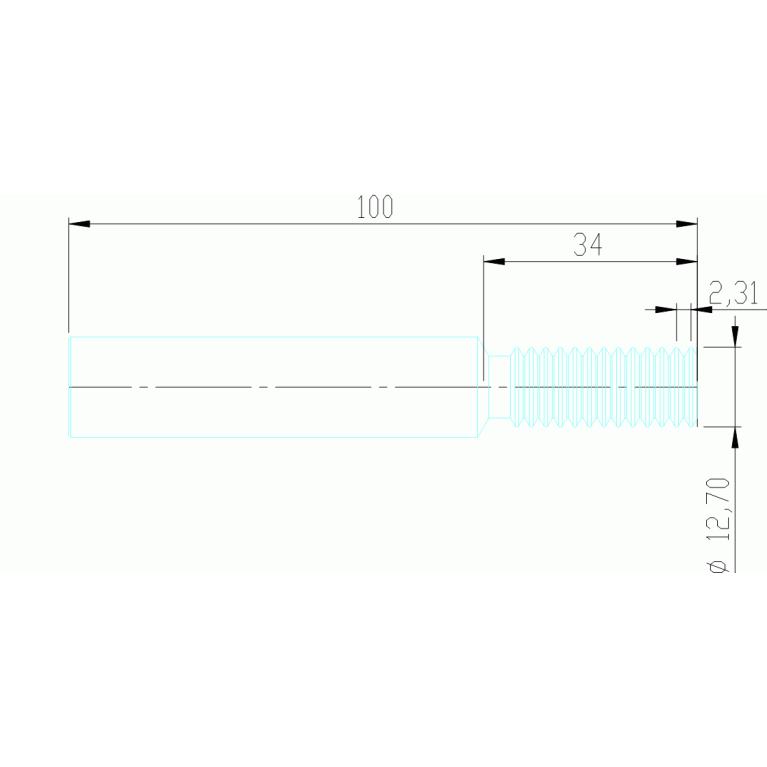

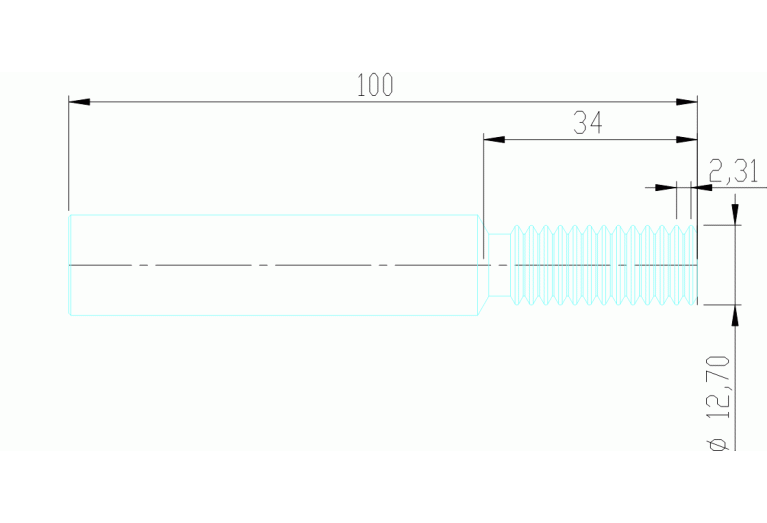

OAL Overall length

100 mm

THFT Thread form type

UNC

TP Thread pitch

2.309 mm

TPI Threads per inch

11 1/in

Working process

No working processes available

ZEFP Peripheral effective cutting edge count
