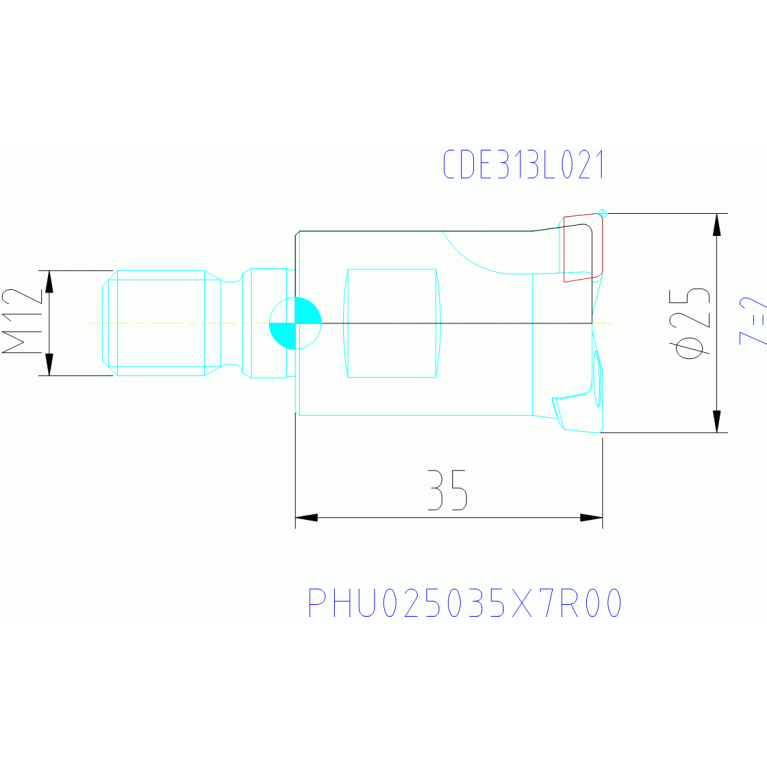

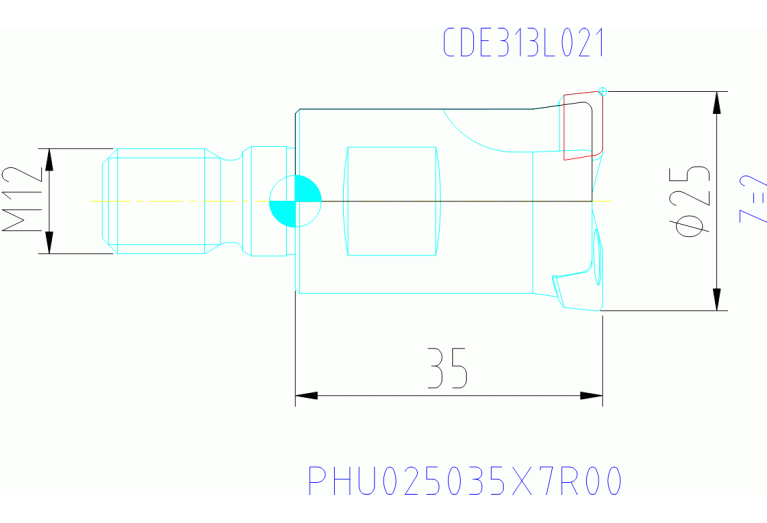

PHU025035X7R00
PHU025035X7R00
Артикул:
3066932
В наличии
Характеристики
BI Block index
1
BLDA Tool style code Position A
3
CCONMS Connection count machine side
2
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
25 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
IL-K-703
DN Neck diameter
21 mm
F23 Number of mounting layers
1
FamilyProducts

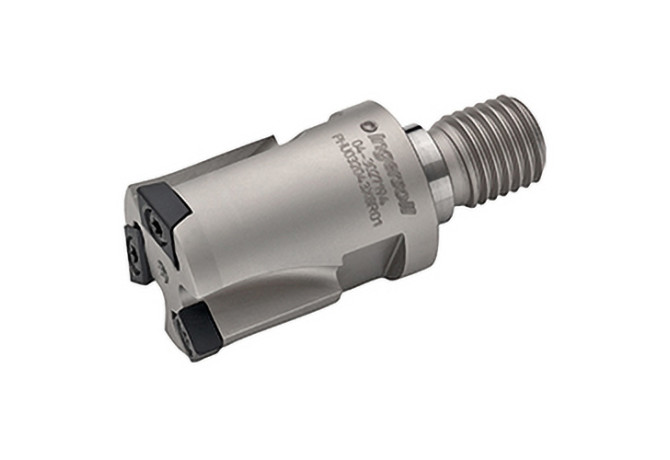

Plunging Mill PHU...X
HAND Cutting direction
R - Right
ID Technical product number
3066932
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
307-10 - Spot facing end mill
LF Functional length
35 mm
LOC-01 BI Block index
1
LOC-01 MIID Master insert identification
CDE313L021T00
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
IL-WSP-144
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
CDE313L021T00
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
IL-WSP-183
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0120
LOC-03 DCONMS Diameter
12 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
IL-K-703
MIID Master insert identification
CDE313L021T00
MILTTY Mill tool type ISO
M - Counterbore milling cutter 0°
Name Identifying order number
PHU025035X7R00
OAL Overall length
35 mm
Working process
No working processes available
WT Weight of item
0.1 kg
