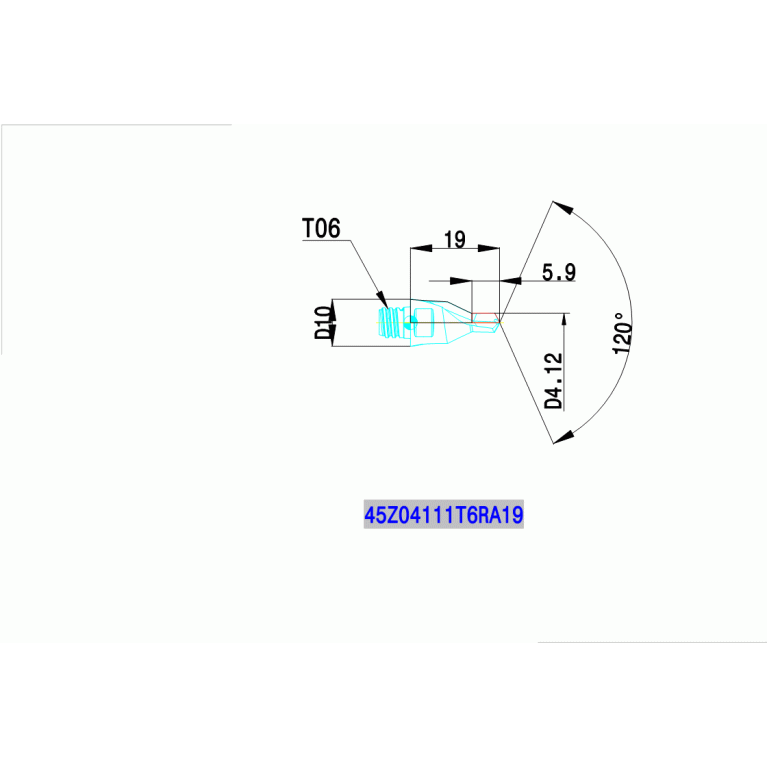

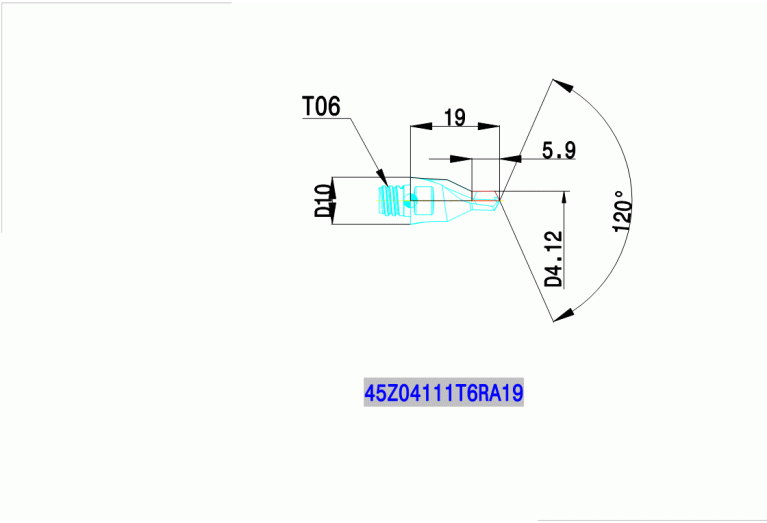

Главная Каталог продукции Toolunited 11 302-07 - Centre drill 45Z04111T6RA19 IN2005

45Z04111T6RA19 IN2005

Артикул: 5812750

В наличии

В корзину

Описание

Характеристики

BD Body diameter 1

10 mm

BMC Body material code

H - Solid carbide

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TiAIN

COMPC Company code

IL - Ingersoll

CTRSYC Centre drill style code

A - Form A

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

4.12 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LA - Soon discontinued

DIN

SAI00600105

FamilyProducts

Centering drill according to DIN 332

GRD2ND Standard designation of the grade 2nd application

HC-K40

GRDMFG Grade manufacturers designation

IN2005

GRDPRIO Standard designation of the grade main application

HC-M35

HAND Cutting direction

R - Right

ID Technical product number

5812750

Interface codes

J6 /

ISYC Subclass

302-07 - Centre drill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI00600105

LPR Protruding length

19 mm

LU Usable length

11 mm

Name Identifying order number

45Z04111T6RA19 IN2005

NOF Flute count

OAL Overall length

25.65 mm

SDL Step diameter length

4.711 mm

SIG Point angle 1st step

120 Degree

STDNO Standard

DIN332

THSZMS Connection thread nominal size machine side

Working process

BVB - Drilling

WT Weight of item

0.012 kg
