10445400
10445400
Артикул:
10445400
В наличии
Характеристики
CCONMS Connection count machine side
1
COATN Coating
ohne
COMPC Company code
CE - Ceratizit
CTRSYC Centre drill style code
A - Form A
Delivery state valid from
10/1/2021
DIN
ZYL01000805
FamilyProducts

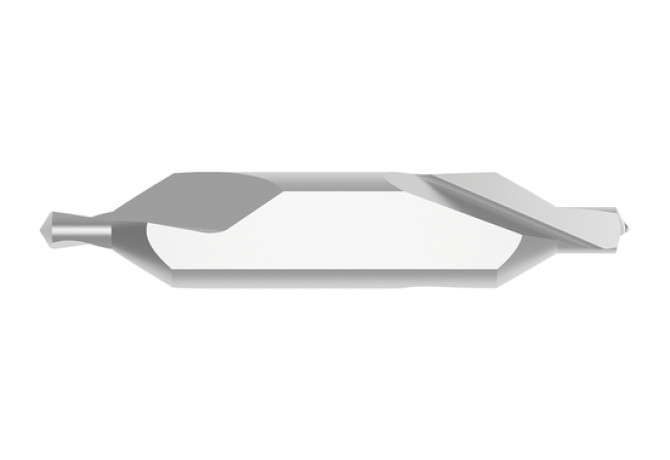

HSSE ZENTRIERBOHRER MIT FLÄCHE
FHH Flute helix hand
L - Hand of helix left
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
302-07 - Centre drill
LOC-03 CCFMS Connection code form
08
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01000805
Name Identifying order number
10445400
NOF Flute count
2
OAL Overall length
56 mm
SIG Point angle 1st step
118 Degree
Working process
No working processes available
