Главная Каталог продукции Toolunited 11 303-00 - End mill unspecified 8331233

8331233

Артикул: 8331233

В наличии

В корзину

Описание

Характеристики

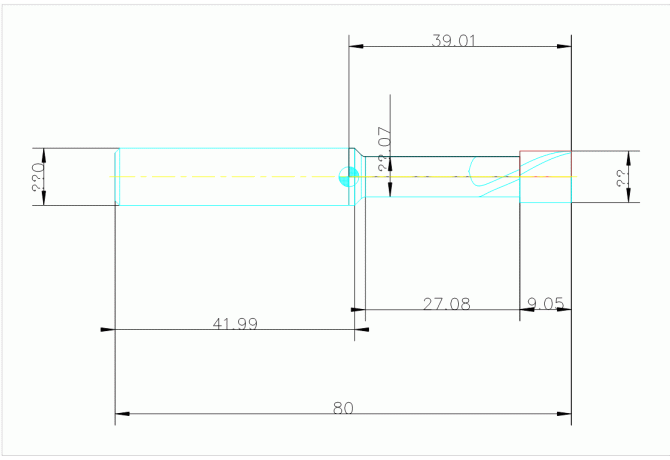

APMX Depth of cut maximum

9.05 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating

DLC layer

COMPC Company code

OSG

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCD Drilling diameter

7.07 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

9 mm

Delivery state valid from

8/1/2021

DIN

ZYL01000115

DN Neck diameter

7.07 mm

FamilyProducts

AT-2 R-SPEC

FHA Flute helix angle

30 Degree

FHH Flute helix hand

L - Hand of helix left

GAMF Rake angle radial

-10 Degree

GAMP Rake angle axial

-5 Degree

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

L - Left

Interface codes

J6 /

ISYC Subclass

303-00 - End mill unspecified

LN Neck length

36.13 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01000115

LPR Protruding length

39.01 mm

LS Shank length

41.99 mm

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

8331233

OAL Overall length

80 mm

PRFA Profile included angle

200 Degree

TCDCONMS ISO-tolerance class shank diameter

TD Thread diameter

12 mm

THFT Thread form type

TP Thread pitch

1.75 mm

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
