Главная Каталог продукции Toolunited 11 303-00 - End mill unspecified 8331231

8331231

Артикул: 8331231

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

6.55 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating / Покрытие

DLC layer

COMPC Company code

OSG

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCD Drilling diameter

4.81 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

6.2 mm

Delivery state valid from

8/1/2021

DIN

ZYL00800115

DN Neck diameter

4.81 mm

FamilyProducts

AT-2 R-SPEC

FHA Flute helix angle

30 Degree

FHH Flute helix hand

L - Hand of helix left

GAMF Rake angle radial

-10 Degree

GAMP Rake angle axial

-5 Degree

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

L - Left

Interface codes

J6 /

ISYC Subclass

303-00 - End mill unspecified

LN Neck length

24.38 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800115

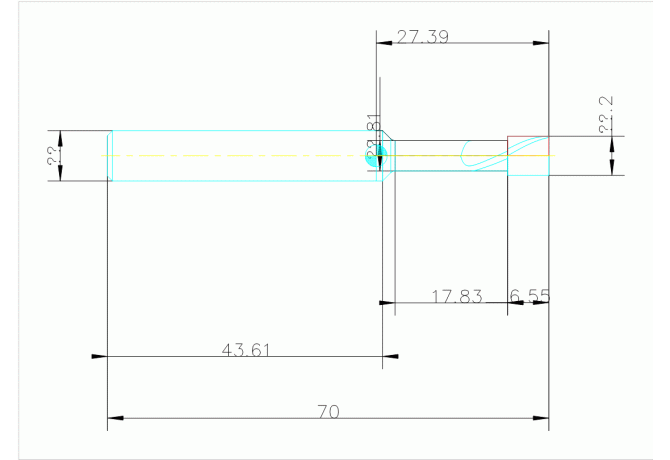

LPR Protruding length

27.39 mm

LS Shank length

43.61 mm

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

8331231

OAL Overall length

70 mm

PRFA Profile included angle

200 Degree

TCDCONMS ISO-tolerance class shank diameter

TD Thread diameter

8 mm

THFT Thread form type

TP Thread pitch

1.25 mm

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
