Главная Каталог продукции Toolunited 11 303-00 - End mill unspecified 8331204

8331204

Артикул: 8331204

В наличии

В корзину

Описание

Характеристики

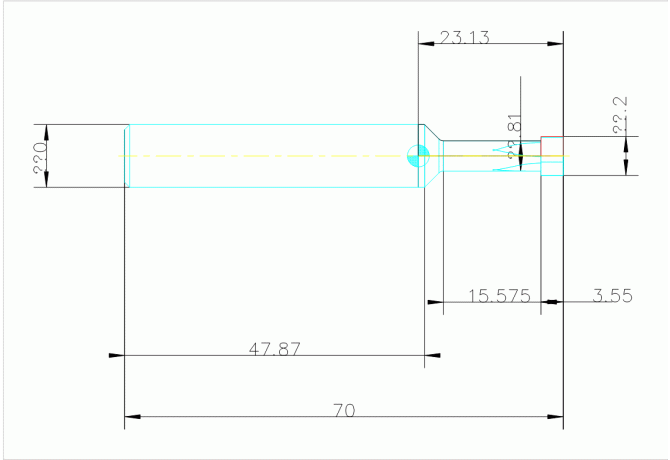

APMX Depth of cut maximum

3.55 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

Multi-SiC layer

COMPC Company code

OSG

CXSC Coolant exit style code

0 - Without coolant exit

DCD Drilling diameter

4.81 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

6.2 mm

Delivery state valid from

4/1/2020

DIN

ZYL01000105

DN Neck diameter

4.81 mm

FamilyProducts

AT-2

FHH Flute helix hand

N - Hand of helix neutral

GAMF Rake angle radial

-10 Degree

GAMP Rake angle axial

-2.5 Degree

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

L - Left

Interface codes

J6 /

ISYC Subclass

303-00 - End mill unspecified

LN Neck length

19.125 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01000105

LPR Protruding length

23.13 mm

LS Shank length

47.87 mm

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

8331204

OAL Overall length

70 mm

PRFA Profile included angle

200 Degree

TCDCONMS ISO-tolerance class shank diameter

TD Thread diameter

8 mm

THFT Thread form type

TP Thread pitch

1.25 mm

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
