Главная Каталог продукции Toolunited 11 303-00 - End mill unspecified 8331202

8331202

Артикул: 8331202

В наличии

В корзину

Описание

Характеристики

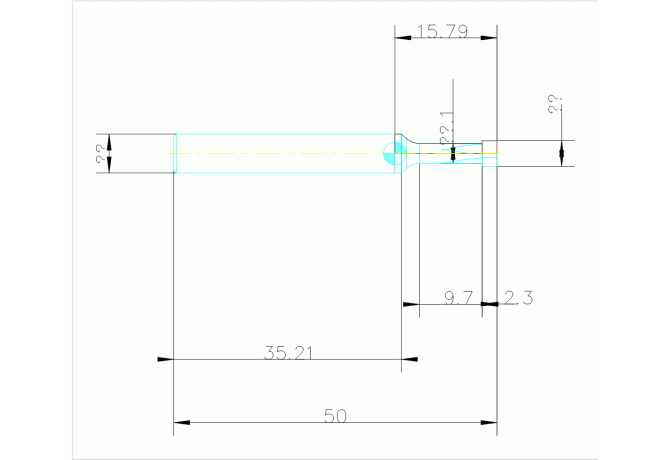

APMX Depth of cut maximum

2.3 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

Multi-SiC layer

COMPC Company code

OSG

CXSC Coolant exit style code

0 - Without coolant exit

DCD Drilling diameter

3.1 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

4 mm

Delivery state valid from

4/1/2020

DIN

ZYL00600105

DN Neck diameter

3.1 mm

FamilyProducts

AT-2

FHH Flute helix hand

N - Hand of helix neutral

GAMF Rake angle radial

-10 Degree

GAMP Rake angle axial

-2.5 Degree

GRDPRIO Standard designation of the grade main application

HAND Cutting direction

L - Left

Interface codes

J6 /

ISYC Subclass

303-00 - End mill unspecified

LN Neck length

12 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600105

LPR Protruding length

15.79 mm

LS Shank length

35.21 mm

MILTTY Mill tool type ISO

T - Thread cutter

Name Identifying order number

8331202

OAL Overall length

50 mm

PRFA Profile included angle

200 Degree

TCDCONMS ISO-tolerance class shank diameter

TD Thread diameter

5 mm

THFT Thread form type

TP Thread pitch

0.8 mm

Working process

No working processes available

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
