52610081
52610081
Артикул:
52610081
В наличии
Характеристики

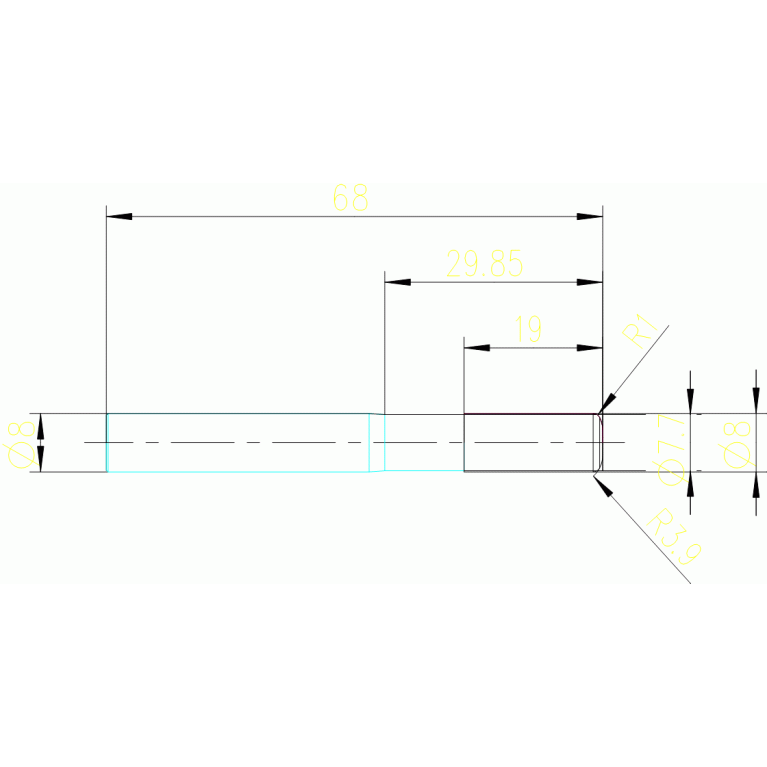

APMX Depth of cut maximum
19 mm
COATN Coating
Ti1200
COMPC Company code
CE - Ceratizit
DC Cutting diameter
8 mm
Delivery state valid from
10/1/2021
DIN
ZYL00801015
DN Neck diameter
7.7 mm
FamilyProducts
HPC VHM STIRNTORUSFRÄSER
FHA Flute helix angle
45 Degree
FHH Flute helix hand
L - Hand of helix left
GAMP Rake angle axial
7 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
303-00 - End mill unspecified
LH Head length
29.85 mm
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00801015
LPR Protruding length
32 mm
LS Shank length
36 mm
Name Identifying order number
52610081
OAL Overall length
68 mm
PRFRAD2 Profile radius 2
3.9 mm
Working process
No working processes available
ZEFP Peripheral effective cutting edge count
4
