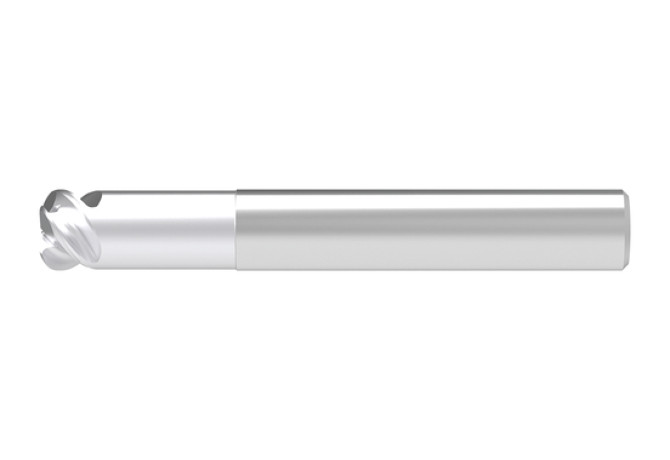

Главная Каталог продукции Toolunited 11 303-00 - End mill unspecified 50962200

50962200

Артикул: 50962200

В наличии

В корзину

Описание

Характеристики

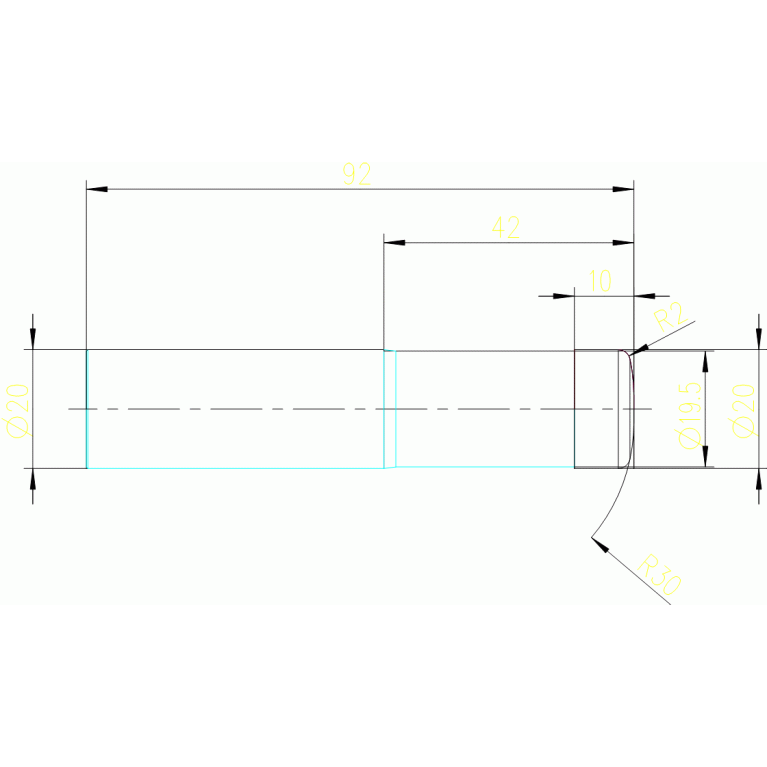

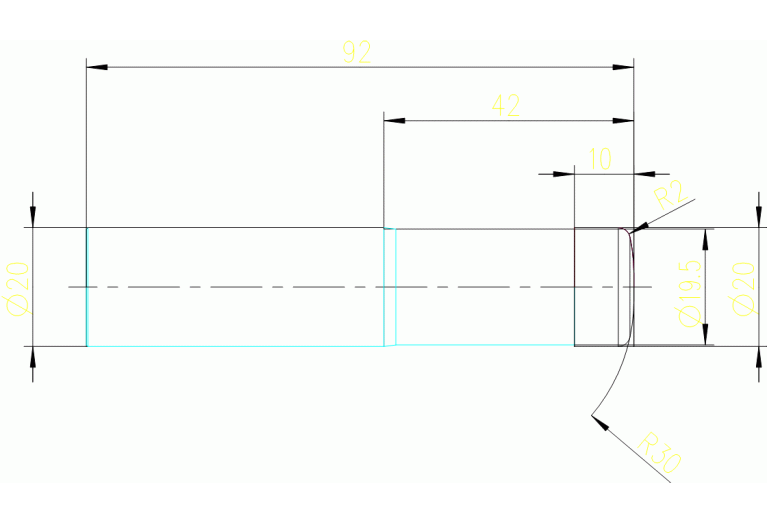

APMX Depth of cut maximum

10 mm

COATN Coating / Покрытие

Ti1010

COMPC Company code

CE - Ceratizit

DC Cutting diameter

4.4 mm

DIN

ZYL02000105

DN Neck diameter

19.5 mm

FamilyProducts

VHM STIRNTORUSFRÄSER

FHA Flute helix angle

52 Degree

FHH Flute helix hand

L - Hand of helix left

GAMP Rake angle axial

0 Degree

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-00 - End mill unspecified

LH Head length

40 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02000105

LPR Protruding length

42 mm

LS Shank length

50 mm

Name Identifying order number

50962200

OAL Overall length

92 mm

PRFRAD2 Profile radius 2

30 mm

Working process

No working processes available

ZEFP Peripheral effective cutting edge count
