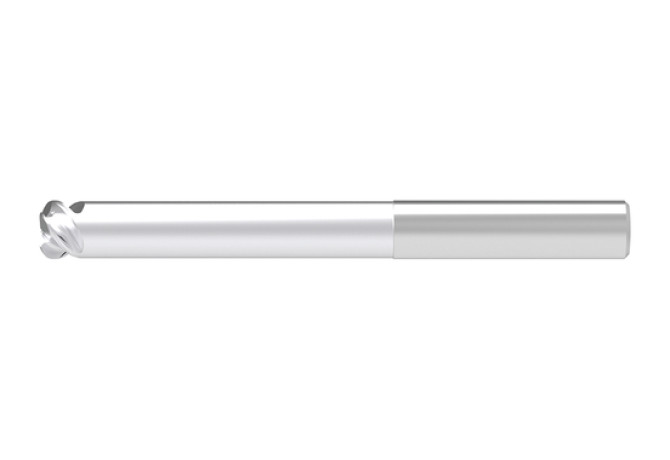

Главная Каталог продукции Toolunited 11 303-00 - End mill unspecified 50961161

50961161

Артикул: 50961161

В наличии

В корзину

Описание

Характеристики

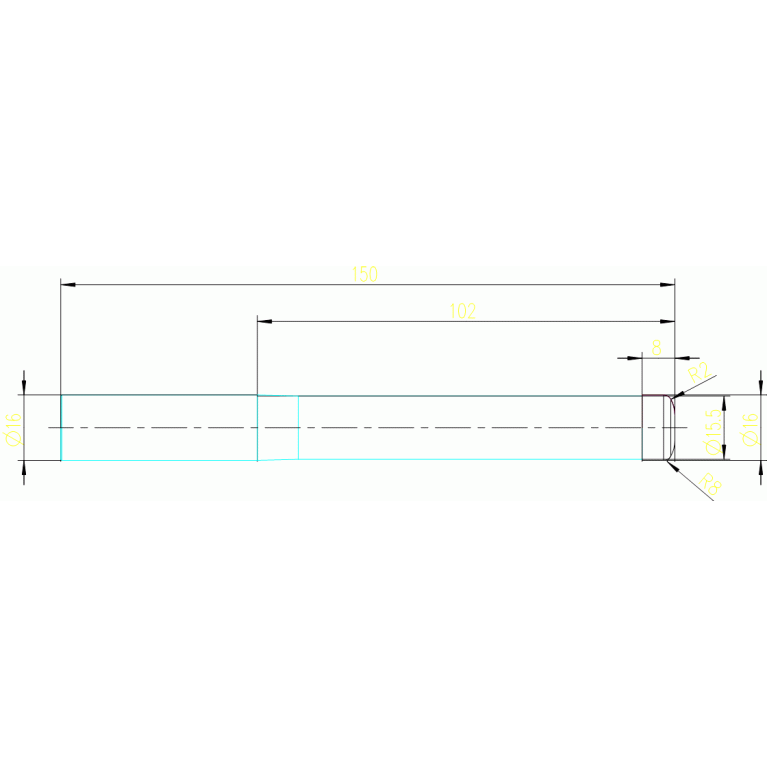

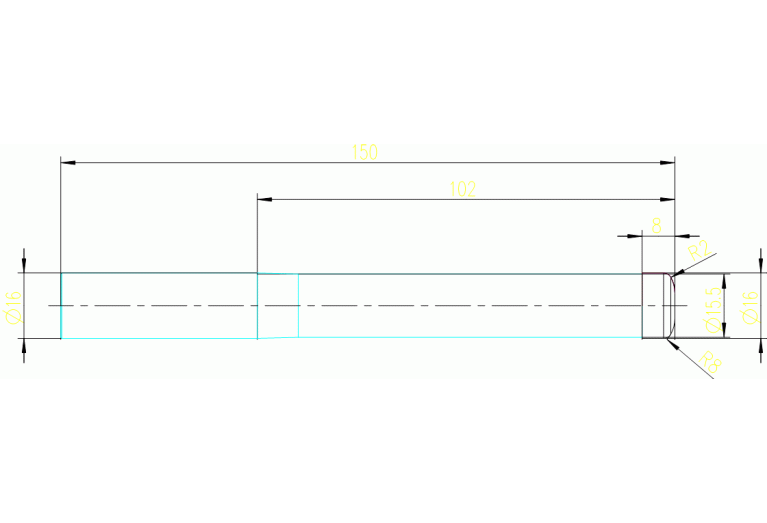

APMX Depth of cut maximum

8 mm

COATN Coating / Покрытие

Ti1010

COMPC Company code

CE - Ceratizit

DC Cutting diameter

6.2 mm

DIN

ZYL01600105

DN Neck diameter

15.5 mm

FamilyProducts

HPC VHM STIRNTORUSFRÄSER

FHA Flute helix angle

52 Degree

FHH Flute helix hand

L - Hand of helix left

GAMP Rake angle axial

8 Degree

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

303-00 - End mill unspecified

LH Head length

92 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

16 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01600105

LPR Protruding length

102 mm

LS Shank length

48 mm

Name Identifying order number

50961161

OAL Overall length

150 mm

PRFRAD2 Profile radius 2

8 mm

Working process

No working processes available

ZEFP Peripheral effective cutting edge count
