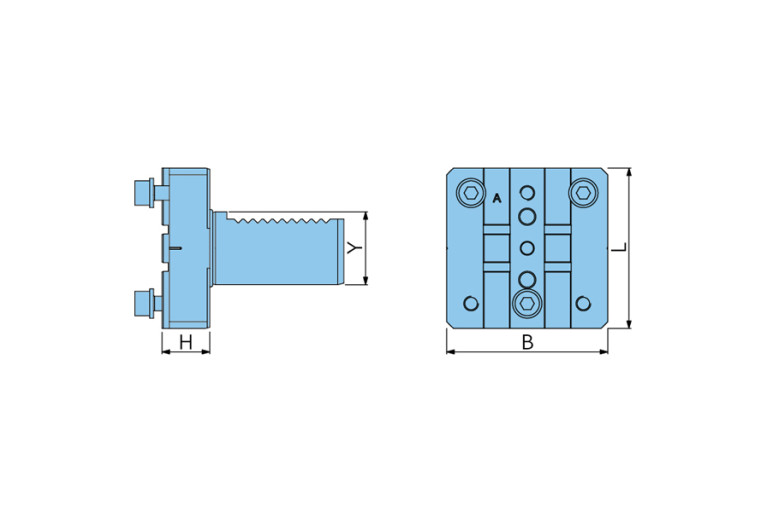

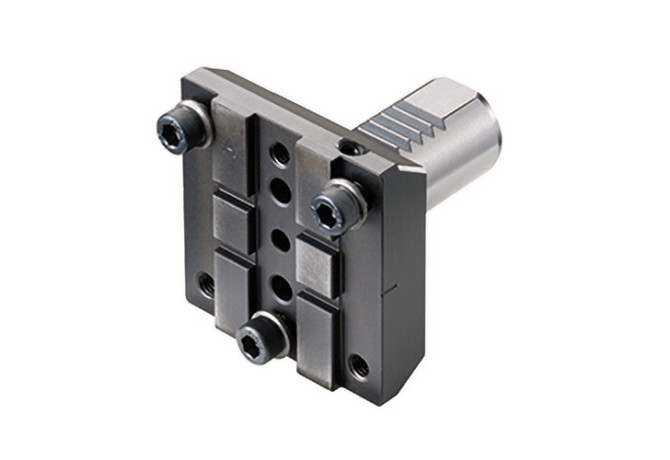

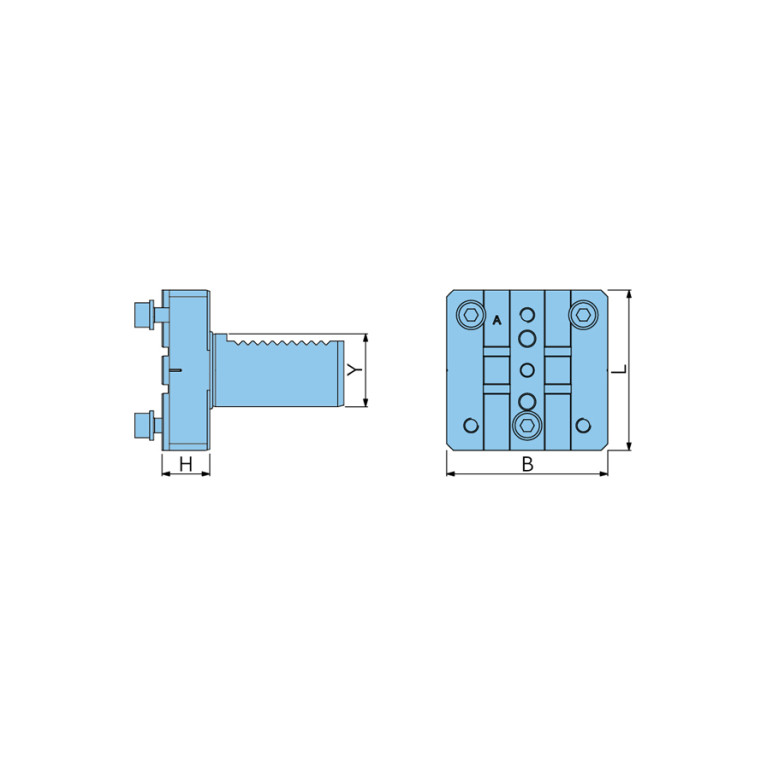

Главная Каталог продукции Toolunited 11 309-00 - Tool holder for indexable inserts unspecified VDI25-CHP-63

VDI25-CHP-63

Артикул: 5891816

В наличии

В корзину

Описание

Характеристики

BI Block index

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCP Data chip provision

0 - Without data chip

Delivery state

LA - Soon discontinued

DIN

ZYV02500115

DIN CSW1

IL-K-1394

FamilyProducts

VDI-CHP

HAND Cutting direction

R - Right

HF Functional height

18.5 mm

ID Technical product number

5891816

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-00 - Tool holder for indexable inserts unspecified

LF Functional length

61.2 mm

LOC-01 BI Block index

LOC-01-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 01)

LOC-01-DIN

IL-K-1394

LOC-02 BI Block index

LOC-02-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 02)

LOC-02-DIN

IL-TT30 CHP 63

LOC-03 B Shank width

60 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYV cylindrical shank VDI type (serrated)

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYV02500115

LTA Length tool assembly

61.2 mm

Name Identifying order number

VDI25-CHP-63

OAL Overall length

61.2 mm

STDDES Standard designation

VDI25-CHP-63

Working process

No working processes available
