Главная Каталог продукции Toolunited 11 309-00 - Tool holder for indexable inserts unspecified TTBU 32-32-TB

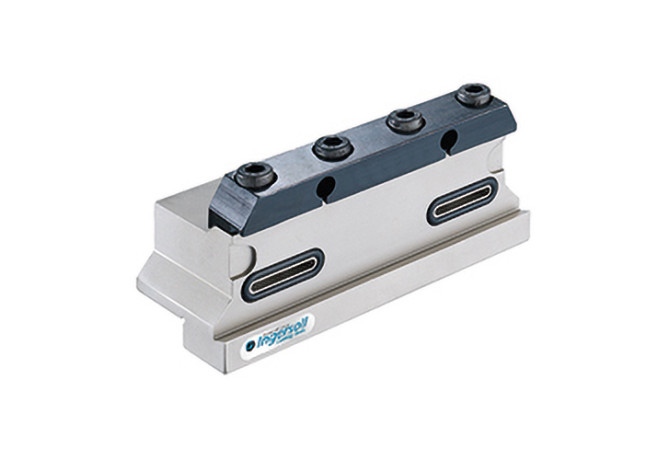

TTBU 32-32-TB

Артикул: 6190340

В наличии

В корзину

Описание

Характеристики

BI Block index

CEDC Cutting edge count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DCP Data chip provision

0 - Without data chip

Delivery state

LA - Soon discontinued

DIN

VKT32320115

DIN CSW1

IL-TGB-TB

FamilyProducts

TTBU-TB

HAND Cutting direction

R - Right

HF Functional height

24.8 mm

ID Technical product number

6190340

Interface codes

J6 /

Interface codes CSW1

J41 /

ISYC Subclass

309-00 - Tool holder for indexable inserts unspecified

LH Head length

110 mm

LOC-01 BI Block index

LOC-01-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 01)

LOC-01-DIN

IL-TGB-TB

LOC-02 BI Block index

LOC-02-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 02)

LOC-02-DIN

IL-TT29 IHP 32

LOC-03 B Shank width

5.3 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

3232

LOC-03 H Shank height

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT32320115

Name Identifying order number

TTBU 32-32-TB

STDDES Standard designation

TTBU 32-32-TB

SX Shank cross section shape code

01 - Square shank

Working process

No working processes available

WT Weight of item

1.24 kg
