GKCDD120P060

Артикул: 10619469

В наличии

В корзину

Описание

Характеристики

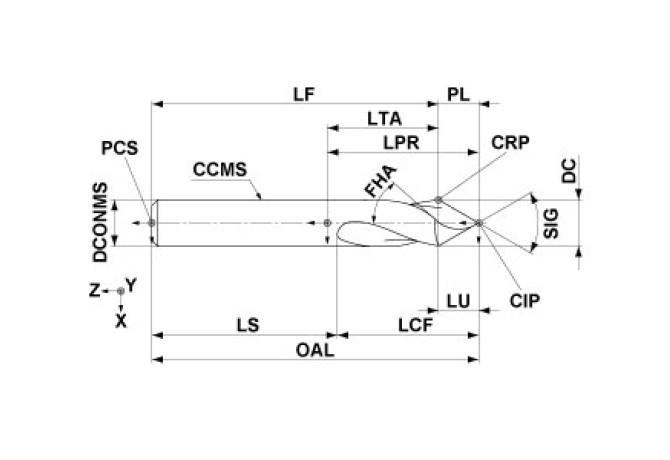

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

12 mm

Delivery state valid from

4/1/2022

DIN

ZYL01200105

FamilyProducts

drilling

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

ID Technical product number

10619469

Interface codes

J6 / J61

ISO

ZYL01G1200$$$$

ISYC Subclass

302-06 - Spot drill

LCF Length chip flute

30 mm

LF Functional length

91.6 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0120

LOC-03 DCONMS Diameter

12 mm

LOC-03 ISO

ZYL01G1200$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01200105

LS Shank length

72 mm

LU Usable length

9.9 mm

Name Identifying order number

GKCDD120P060

NOF Flute count

OAL Overall length

102 mm

PL Point length

10.4 mm

SIG Point angle 1st step

60 Degree

Working process

No working processes available
