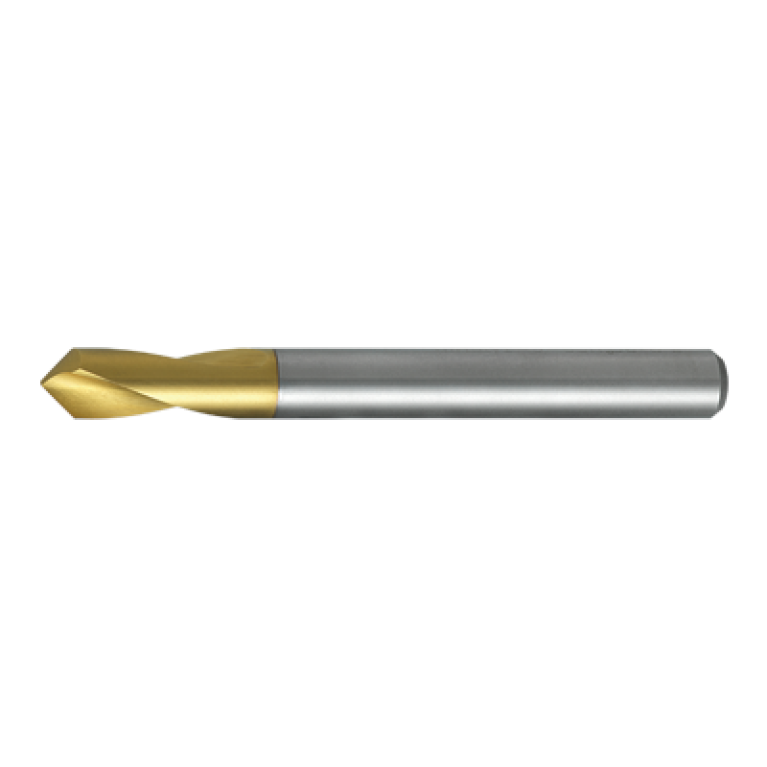

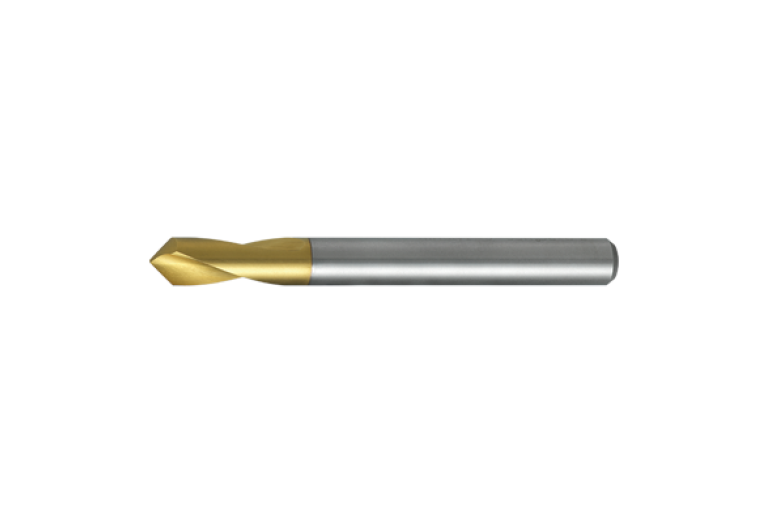

Главная Каталог продукции Toolunited 11 302-06 - Spot drill GKCDD080P120

GKCDD080P120

Артикул: 10619599

В наличии

В корзину

Описание

Характеристики

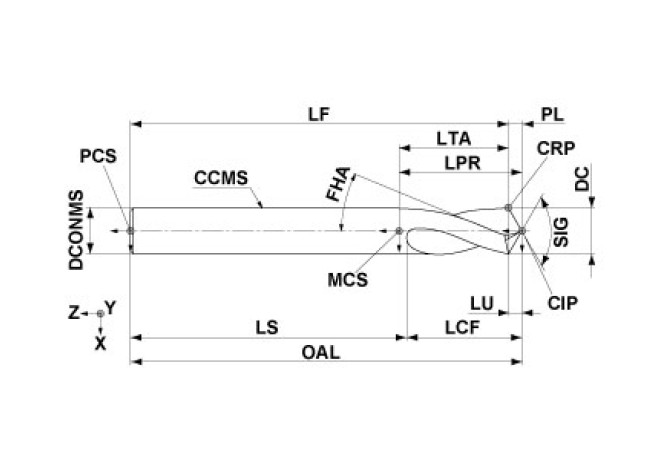

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

8 mm

Delivery state valid from

4/1/2022

DIN

ZYL00800105

FamilyProducts

drilling

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

ID Technical product number

10619599

Interface codes

J6 / J61

ISO

ZYL01F8000$$$$

ISYC Subclass

302-06 - Spot drill

LCF Length chip flute

25 mm

LF Functional length

76.7 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 ISO

ZYL01F8000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00800105

LS Shank length

54 mm

LU Usable length

2.2 mm

Name Identifying order number

GKCDD080P120

NOF Flute count

OAL Overall length

79 mm

SIG Point angle 1st step

120 Degree

Working process

No working processes available
