Главная Каталог продукции Toolunited 11 302-06 - Spot drill DLE0600S060P060 DP1020

DLE0600S060P060 DP1020

Артикул: 10605950

В наличии

В корзину

Описание

Характеристики

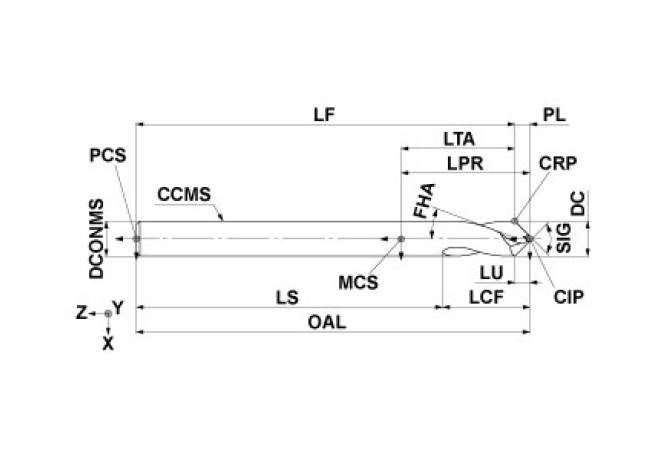

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

6 mm

Delivery state valid from

4/1/2022

DIN

ZYL00600105

FamilyProducts

drilling

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

ID Technical product number

10605950

Interface codes

J6 / J61

ISO

ZYL01F6000$$$$

ISYC Subclass

302-06 - Spot drill

LCF Length chip flute

15 mm

LF Functional length

15 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03 ISO

ZYL01F6000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600105

LS Shank length

51 mm

LU Usable length

4 mm

Name Identifying order number

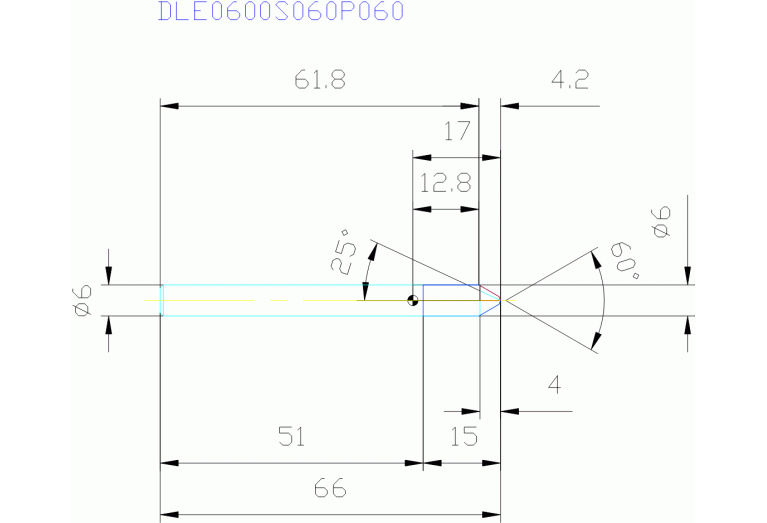

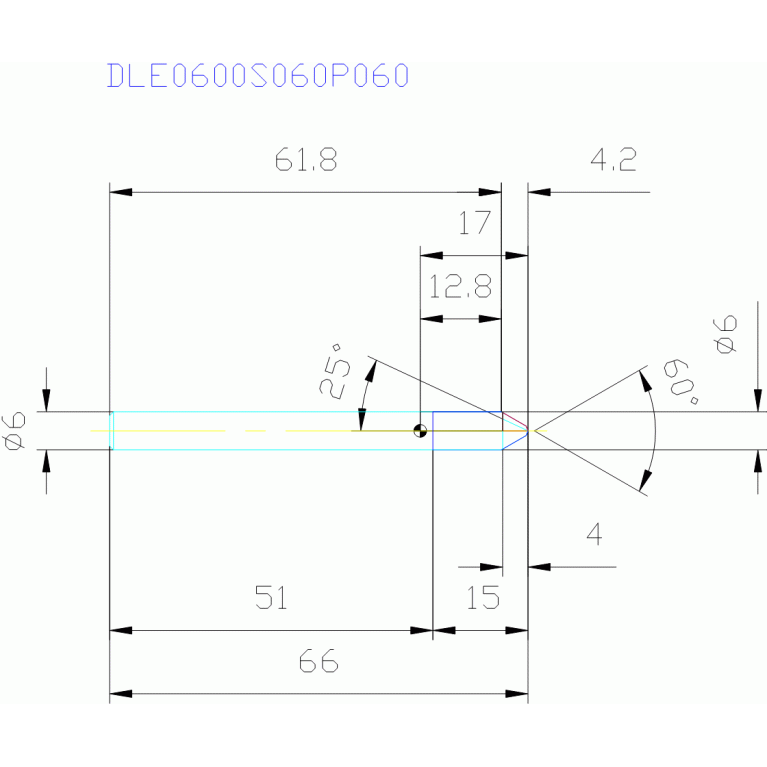

DLE0600S060P060 DP1020

NOF Flute count

OAL Overall length

66 mm

SIG Point angle 1st step

60 Degree

Working process

No working processes available
