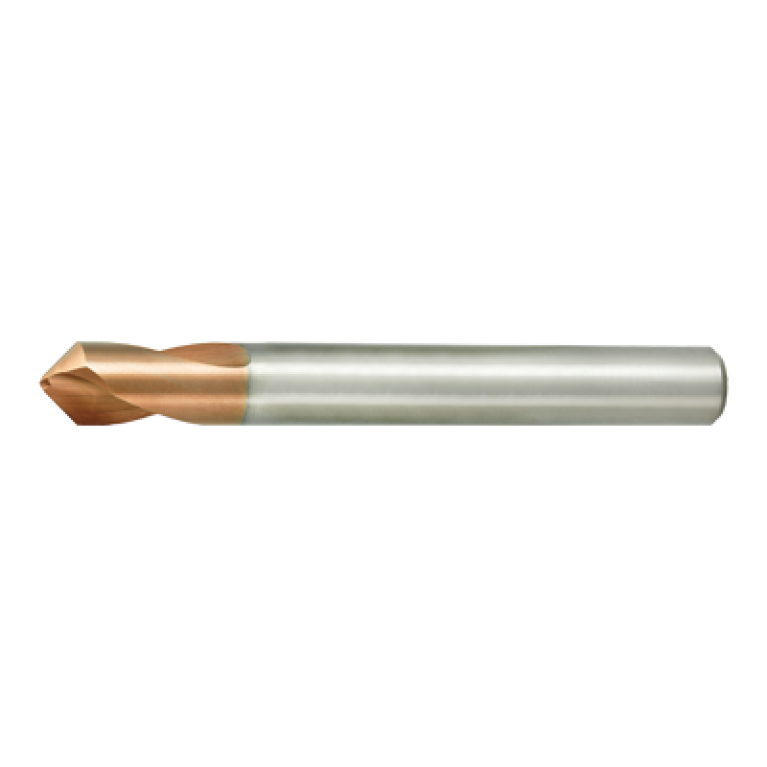

Главная Каталог продукции Toolunited 11 302-06 - Spot drill DLE0100S030P090 DP102A

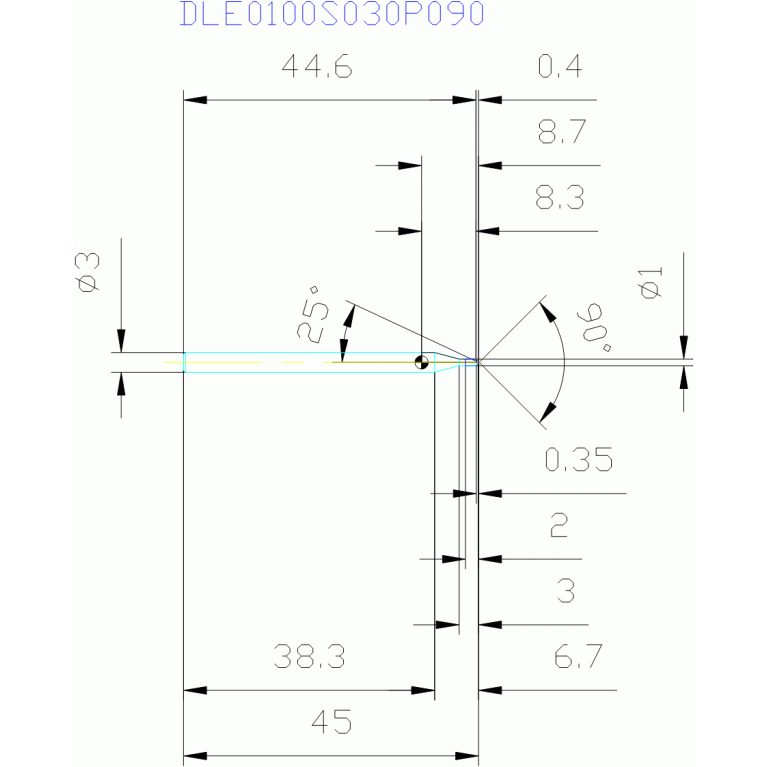

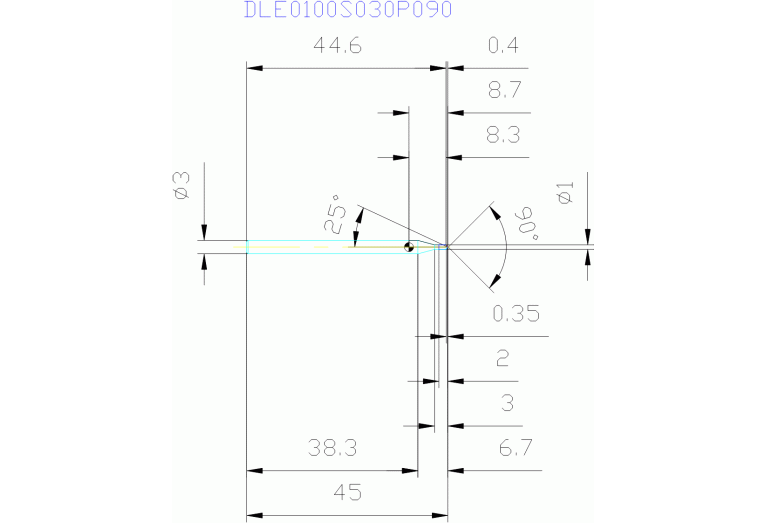

DLE0100S030P090 DP102A

Артикул: 10614372

В наличии

В корзину

Описание

Характеристики

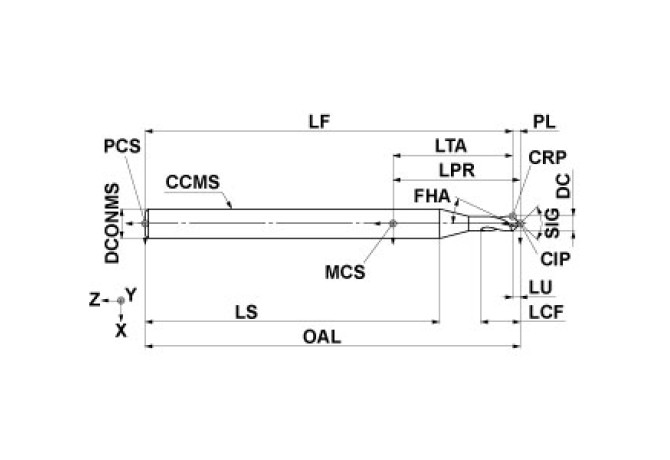

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

1 mm

Delivery state valid from

4/1/2022

DIN

ZYL00300105

FamilyProducts

drilling

FHH Flute helix hand

R - Hand of helix right

HAND Cutting direction

R - Right

ID Technical product number

10614372

Interface codes

J6 / J61

ISO

ZYL01F3000$$$$

ISYC Subclass

302-06 - Spot drill

LCF Length chip flute

2 mm

LF Functional length

44.6 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0030

LOC-03 DCONMS Diameter

3 mm

LOC-03 ISO

ZYL01F3000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00300105

LS Shank length

38.3 mm

LU Usable length

0.35 mm

Name Identifying order number

DLE0100S030P090 DP102A

NOF Flute count

OAL Overall length

45 mm

SIG Point angle 1st step

90 Degree

Working process

No working processes available
