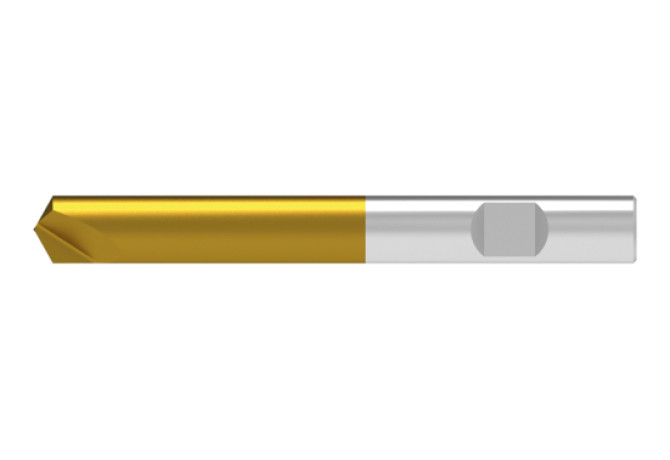

10513080
10513080
Артикул:
10513080
В наличии
Характеристики
CCONMS Connection count machine side
1
COATN Coating
TiN
COMPC Company code
CE - Ceratizit
DC Cutting diameter minimum
8 mm
Delivery state valid from
10/1/2021
DIN
ZYL00801005
FamilyProducts
HSS NC-ANBOHRER KURZ
FHH Flute helix hand
L - Hand of helix left
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
302-06 - Spot drill
LCF Length chip flute
9 mm
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00801005
LPR Protruding length
43 mm
LS Shank length
36 mm
Name Identifying order number
10513080
NOF Flute count
2
OAL Overall length
79 mm
SIG Point angle 1st step
120 Degree
Working process
No working processes available
