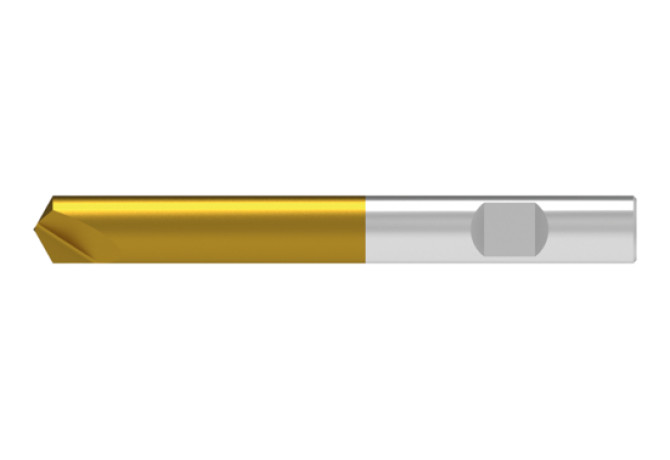

Главная Каталог продукции Toolunited 11 302-06 - Spot drill 10513060

10513060

Артикул: 10513060

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

COATN Coating

TiN

COMPC Company code

CE - Ceratizit

DC Cutting diameter minimum

6 mm

Delivery state valid from

10/1/2021

DIN

ZYL00601005

FamilyProducts

HSS NC-ANBOHRER KURZ

FHH Flute helix hand

L - Hand of helix left

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-06 - Spot drill

LCF Length chip flute

7 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00601005

LPR Protruding length

30 mm

LS Shank length

36 mm

Name Identifying order number

10513060

NOF Flute count

OAL Overall length

66 mm

SIG Point angle 1st step

120 Degree

Working process

No working processes available
